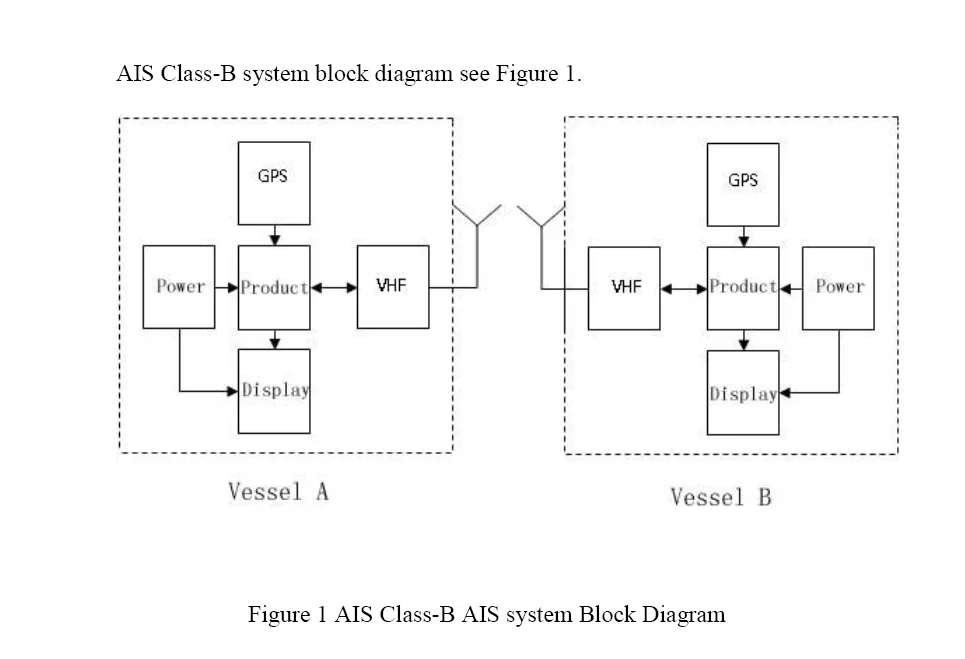

HA-102 Marine AIS receiver and transmitter system 5 watts CLASS B AIS Transponder Dual Channel Function CSTDMA Function
The HA-102 has a "B+" transponder and has a 5watt transmission power
the VHF Antenna connection port is "SO239/PL259"

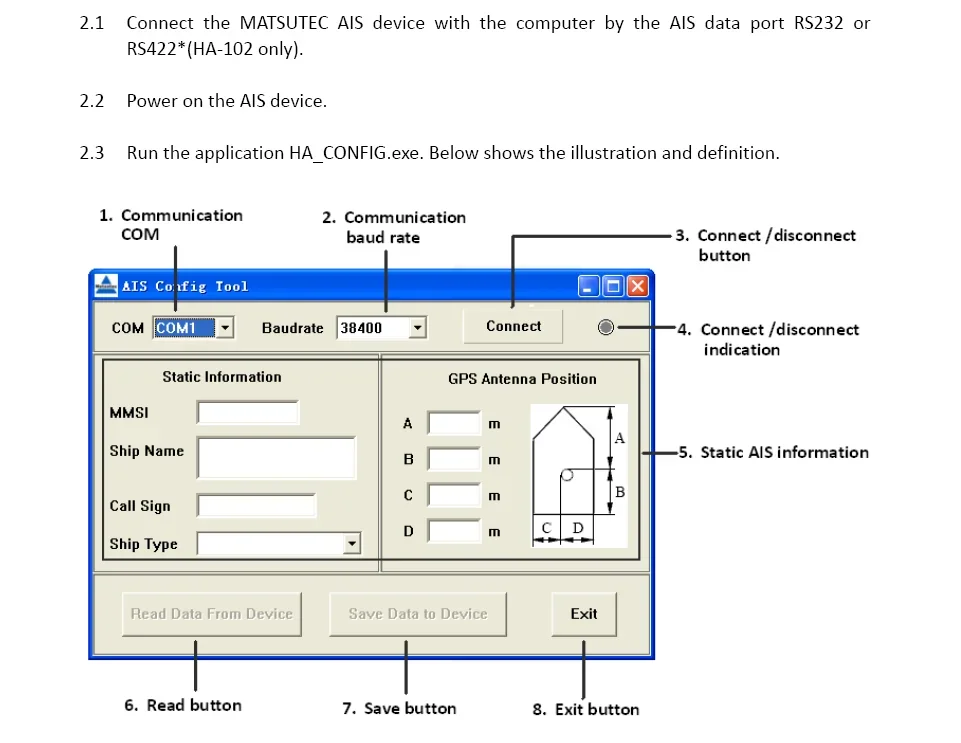

HA-102:An important factor is being able to re-enter a different MMSI #, boat name...
Power supply：
Power supply: Rated Voltage: +12VDC
Extreme Voltage: +9.6VDC，+24VDC
Electrical functions are in accordance with IEC 62297-1

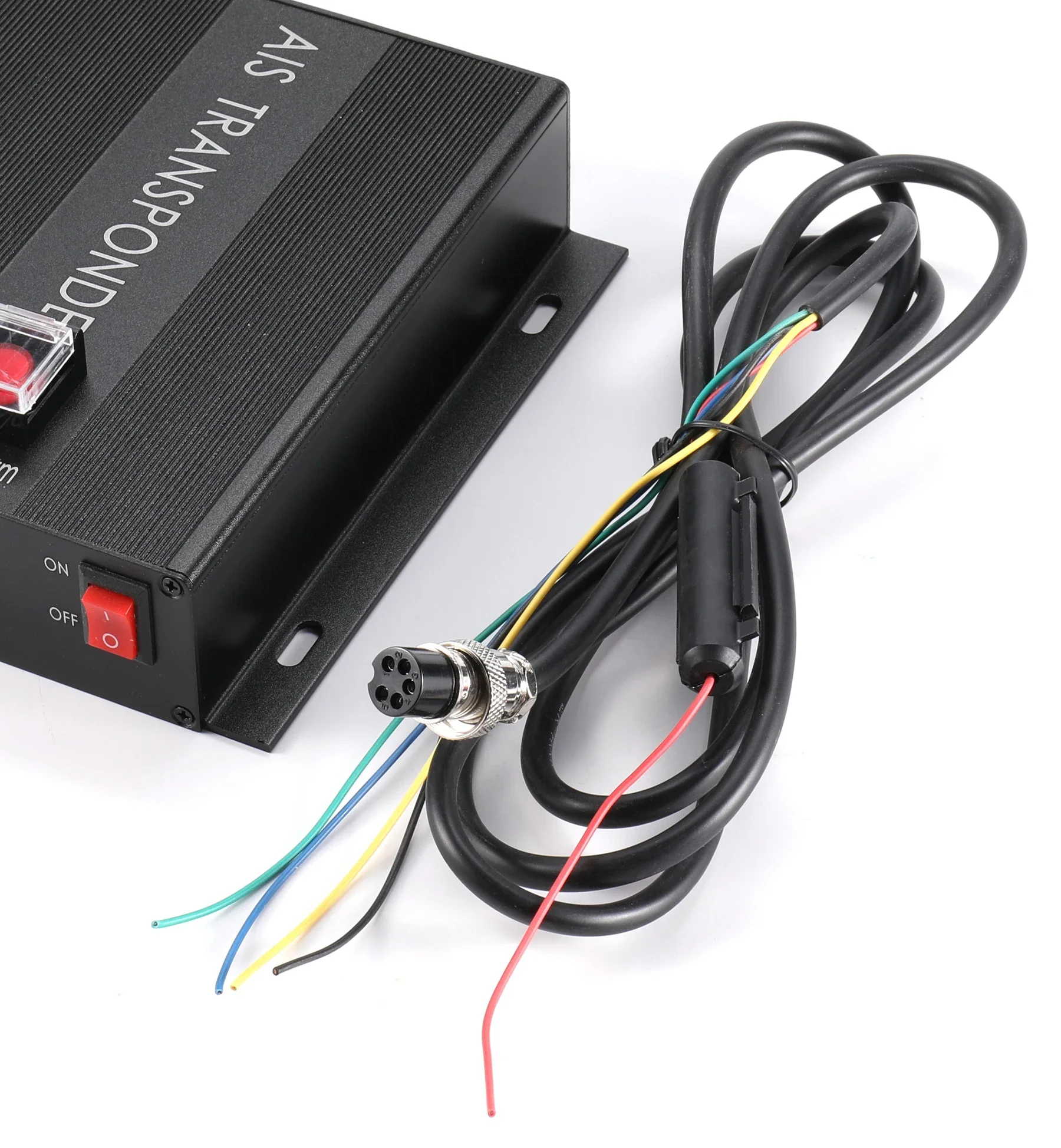

Pin1:Red Power+;
Pin2: Black Power-;
Pin3(output): Green TXD;
Pin4:Yellow NC;
Pin5: Blue GND;

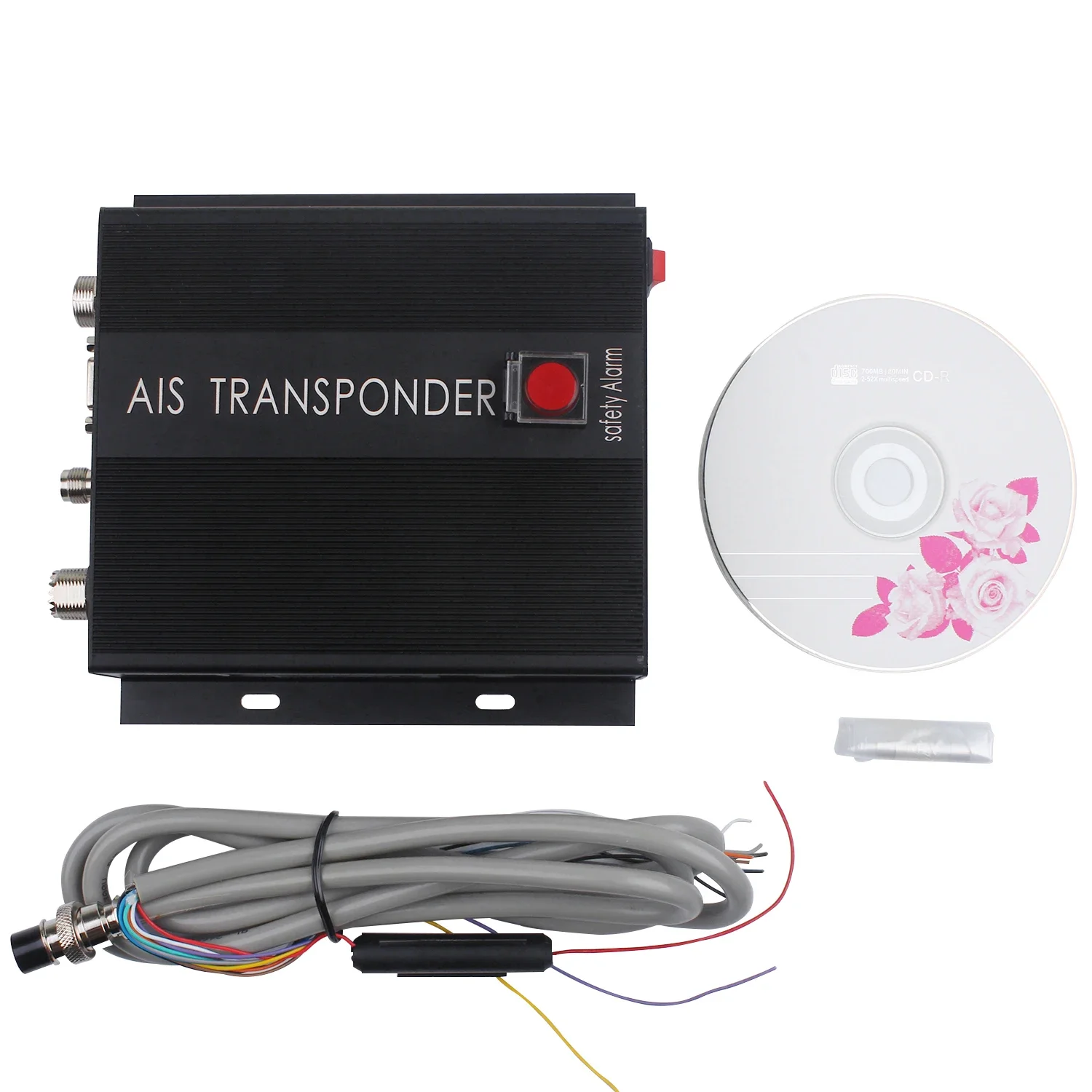

Ｇentle reminder: Package have not include GPS antenna and VHF antenna, HA-102 can use other brands of antenna , are compatible.
Matsutec Class B AIS Transponder
Model: HA-102
FEATURES
- Electrical function is accordance with IEC 62297-1
- Dual Channel function: Two TDMA receivers ar receiving datum in two independent channels at the same time, and one TDMA transmitter is transmitting in two independent channels alternately.
- SOTDMA function can avoid and solve communication conflict.
- Transponder has external serial data interface(RS-422, RS-232).
- Transmit and reciever safety message, and equipped with "SOS" safety button.
- Support three operation mode: Carrier-sense mode, assigned mode and polled mode.
- Internal GPS reciever, as data source for position, COG and SOG can be connected to all devices compatible to GPS and PC, PDA, ECDIS, RADAR, etc.
- Alarm and indication (via LED) for power , error, time-out, status.

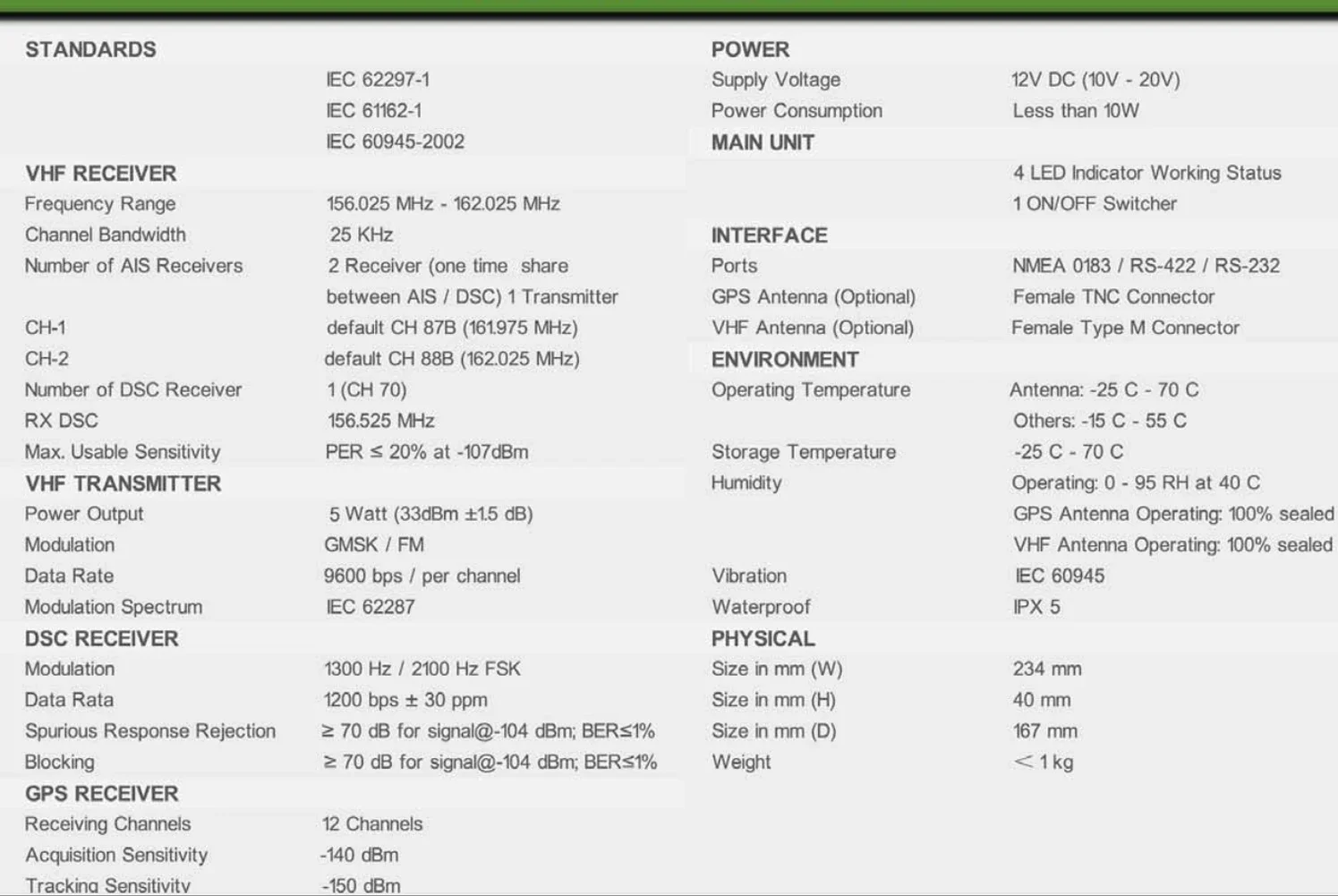

Specifications
STANDARDS | IEC 62297-1 |
IEC 61162-1 | |
IEC 60945-2002 |
VHF RECEIVER
Frequency Range | 156.025MHZ ~ 162.025 MHZ |
Channel Bandwidth | 25 KHZ |
Number of AIS Receivers | 2 Receiver ( one time shared between |
AIS/DSC ) / 1 Transmitter | |
CH-1 | Default CH 87B ( 161.975 MHZ ) |
CH-2 | Default CH 88B ( 162.025 MHZ ) |
Number of DSC Receiver | 1 ( CH 70) |
RX DSC | 156.525 MHZ |
Max. Usable Sensitivity | PER less 20% at -107dBm |
VHF TRANSMITTER
Power Output | 5 Watt ( 33 dBm ±1.5dB ) |
Modulation | GMSK / FM |
Data Rate | 9.6K dps / per channel |
Modulation Spectrum | IEC 62287 |
DSC RECEIVER
Modulation | 1300 HZ / 2100 Hz FSK |
Data Rate | 1200 bps ± 30 ppm |
Spurious Response Rejection | Over 70dB for Signal @ -104dBm; BER less 1% |
Blocking | More 84dB for Signal @ -104dBm; BER less 1% |
GPS RECEIVER
Receiving Channels | 12 Channels |
Acquisition Sensitivity | -140dBm |
Tracking Sensitivity | -150 dBm |
Position Accuracy | < 2.5m CEP ( GPS ) without SA |
Output Rate | 1 Hz |
POWER SUPPLY
Supply Voltage | 12V DC ( 10V ~ 20V ) |
Power Consumption | Less than 10W |
MAIN UNIT

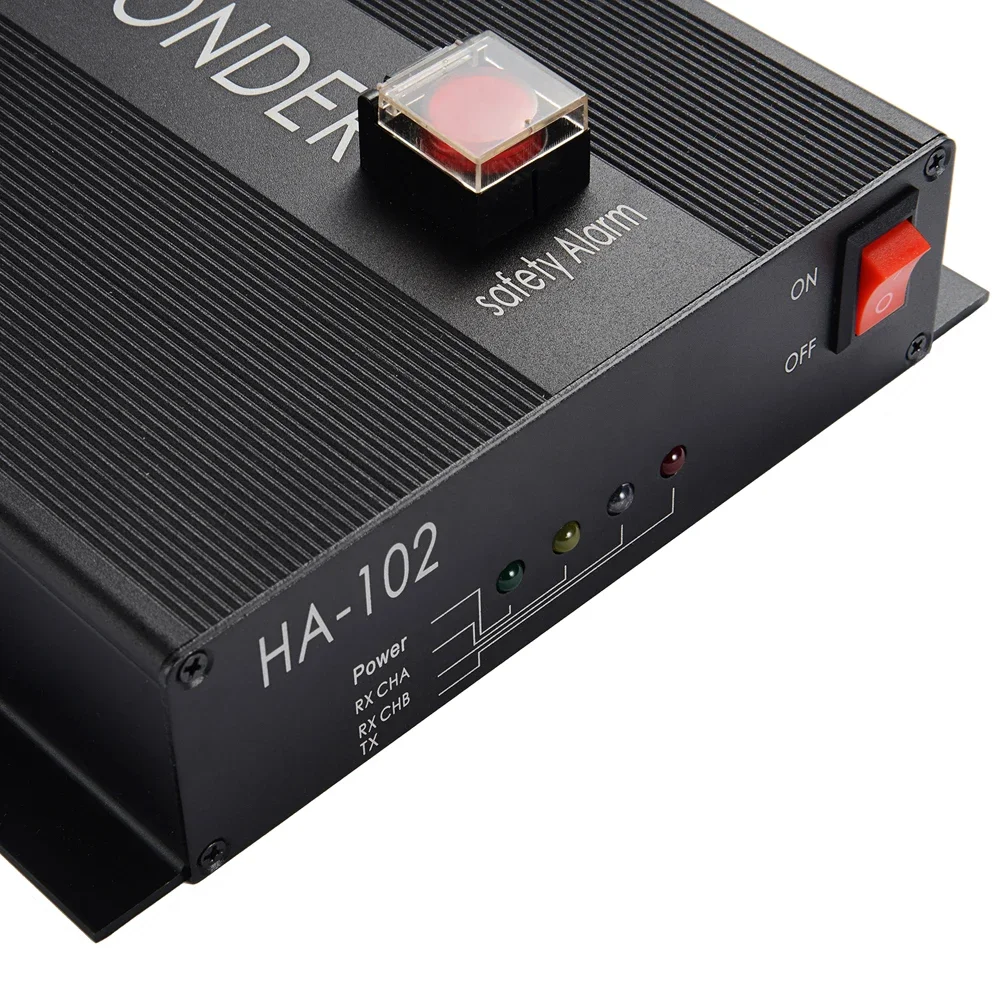

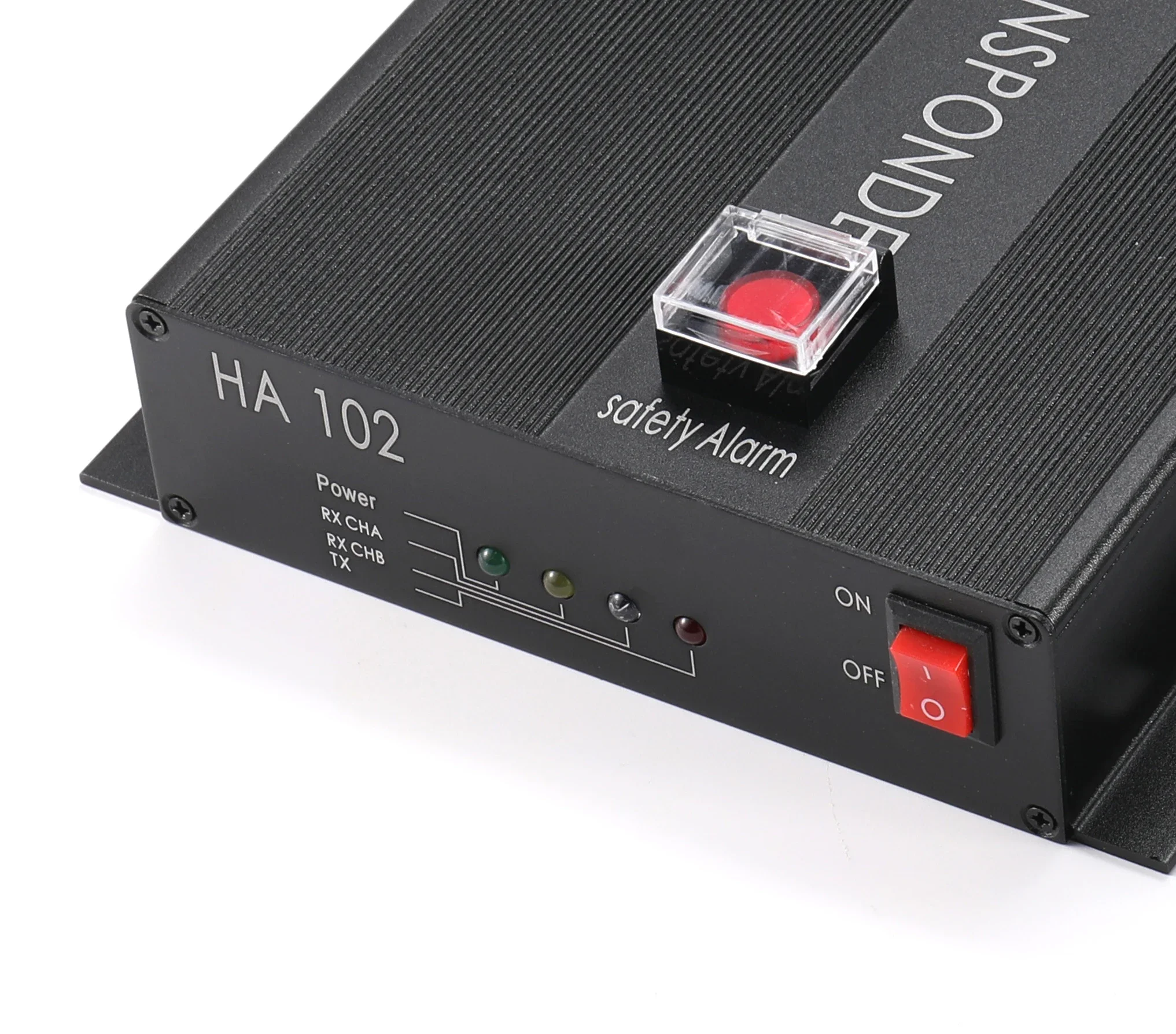

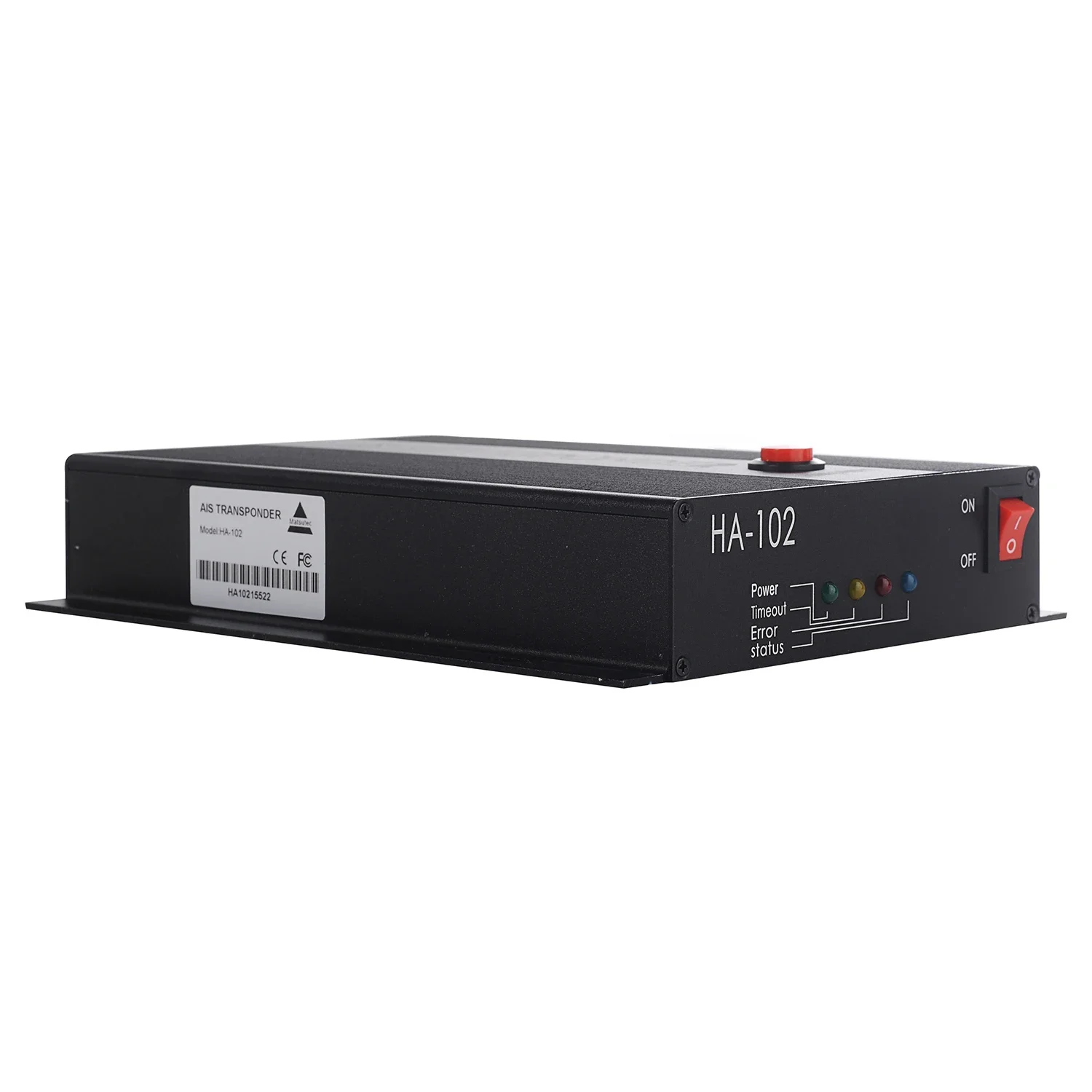

4 LED Indicator Working Status |
1 ON/OFF Switcher |
INTERFACE
Ports | NMEA 0183 / RS-422 / RS-232 |
GPS Antenna ( Optional ) | Female TNC Connector |
VHF Antenna ( Optional ) | Female Type M Connector |
( Type N Connector optional ) |
ENVIROMENT
Operating Temperature | Antenna : -25 ~ 70 C Celcius |
Others : -15 ~ 55 C Celcius | |
Storage Temperature | -25 ~ 70 C Celcius |
Humidity | Operating: 0 ~ 95 RH at 40 C Celcius |
GPS Antenna operating : 100% Hermetically sealed | |
VHF Antenna operating : 100% Hermetically sealed | |
Vibration | IEC 60945 |
Waterproof | IPX5 |
PHYSICAL
Size in mm ( W ) | 234mm |
Size in mm ( H ) | 40mm |
Size in mm ( D ) | 167mm |
Weight | <1 Kg |
