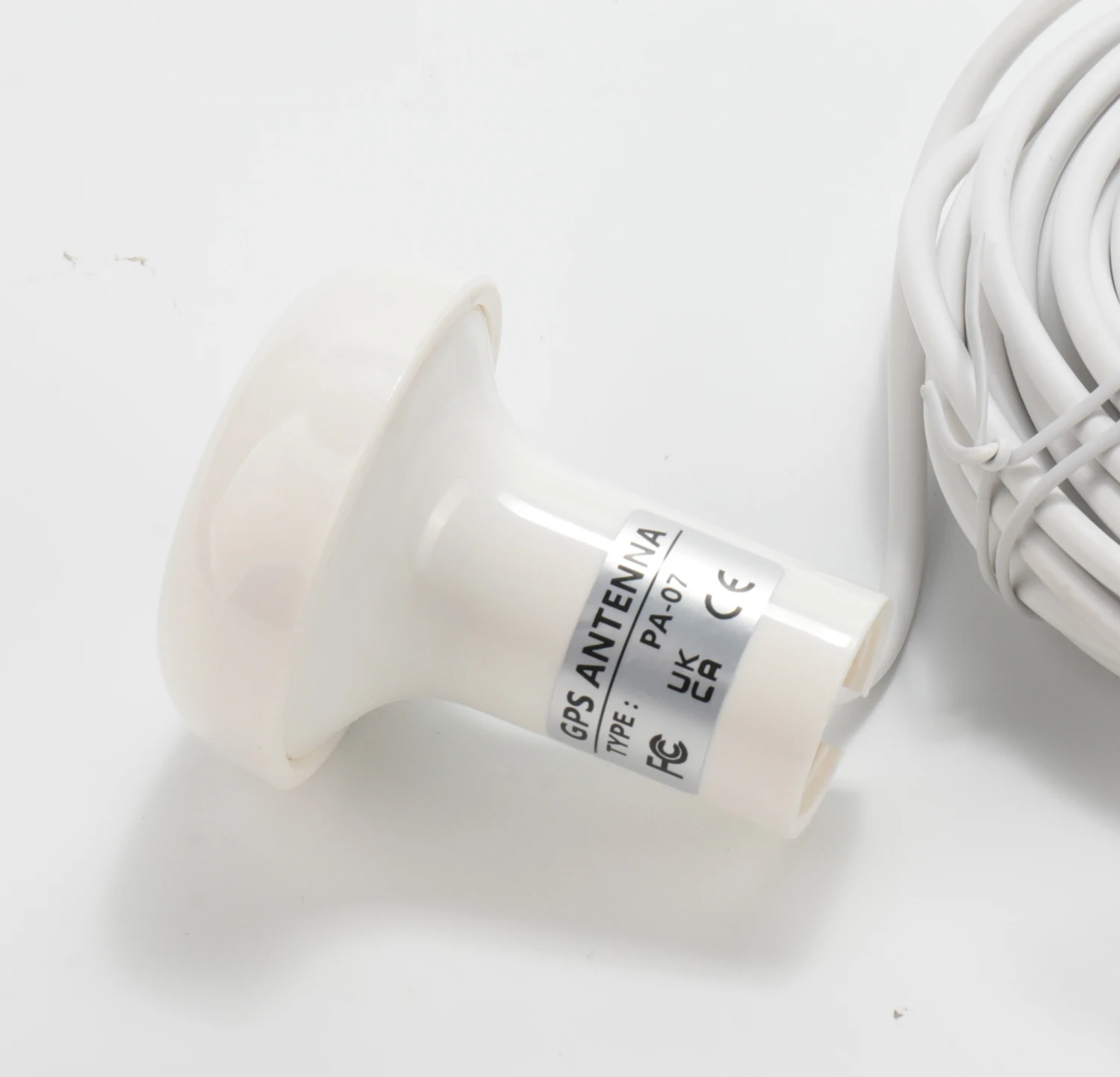

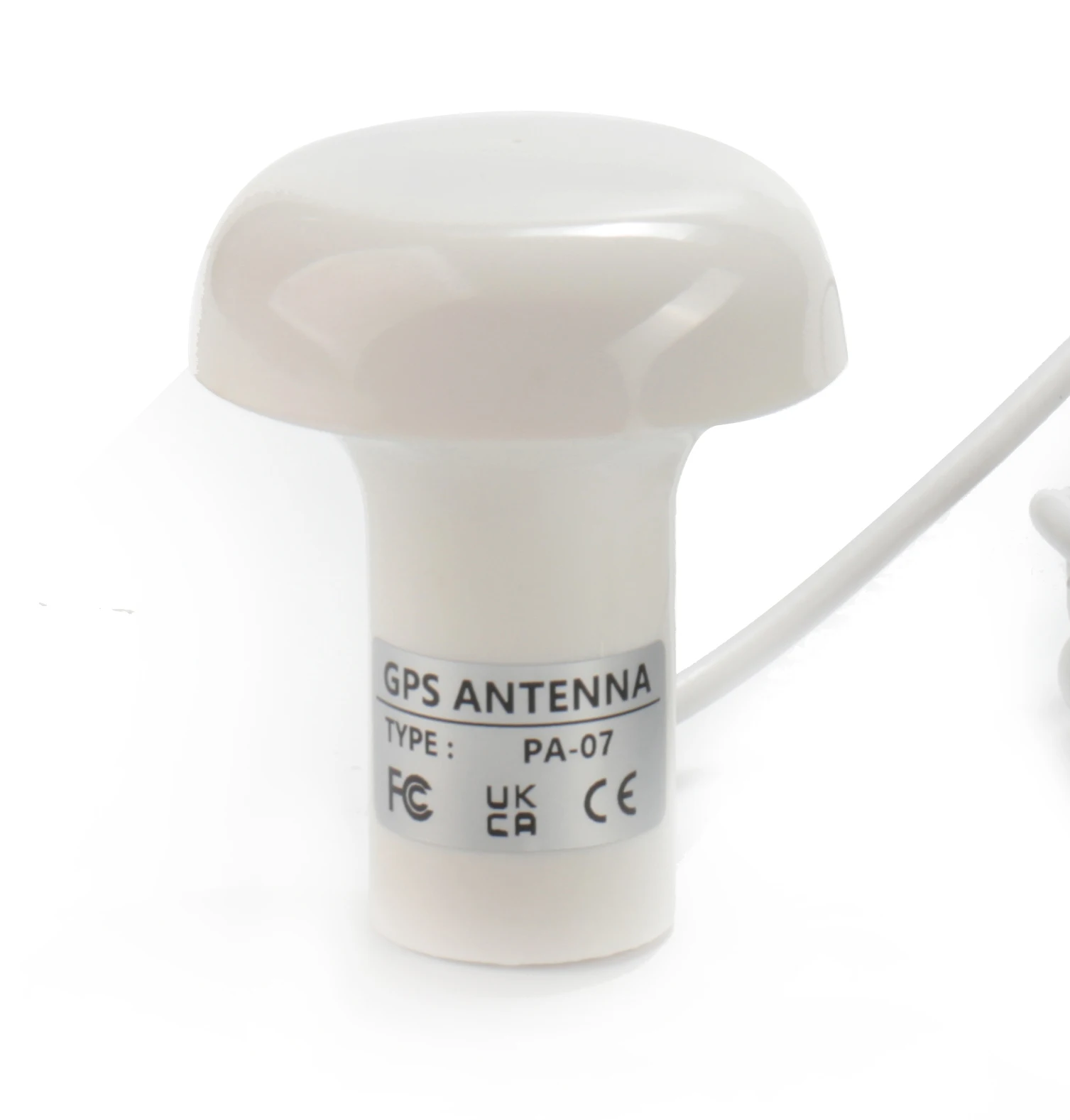

PLOSON PA-07 1 pcs Marine GPS Antenna with 10 meter cable BNC Male connector RF Cable 10m RG-59 TNC Interface Waterproofing IPX6

PLOSON PA-07 1 pcs Marine GPS Antenna with 10 meter cable BNC Male connector RF Cable 10m RG-59 TNC Interface Waterproofing IPX6

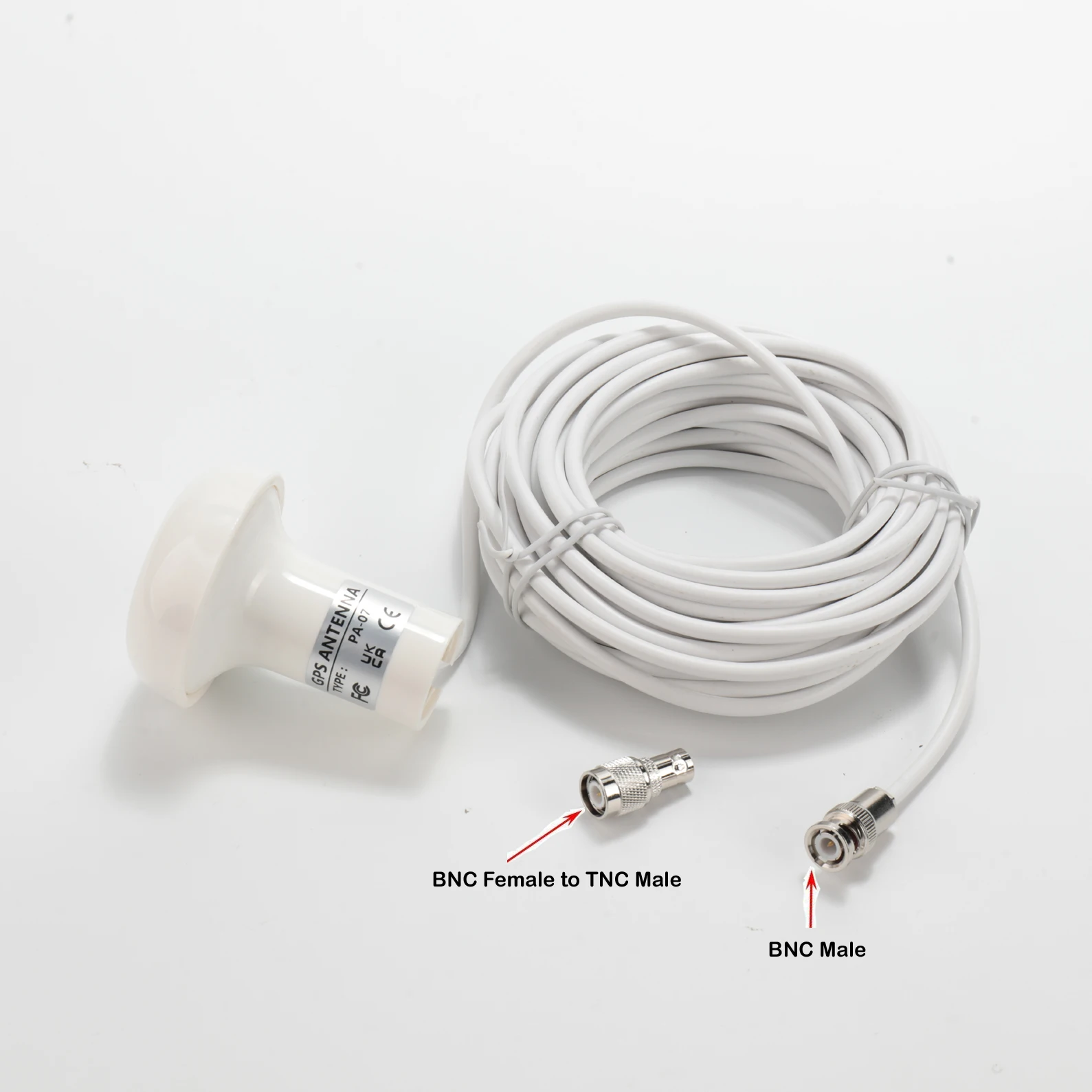

  • Marine GPS Antenna with 10 meter cable BNC Male connector + BNC Female to TNC Male Connector
  • Connector : BNC connector supplied as standard
  • Antenna Element Center Frequency : 1575.42 Mhz ± 1.023Mhz Absolute gain zenith : +5dB typical Absolute gain 10° : -1dB typical Axial ratio : 3dB max Output VSWR : 1.5 max Output impedance : 50 ohm
  • PA-07 Antenna Weight : 550g (with cable & connector)
  • High compact, corrosion-proof PC (polycarbonate) resin




Physical :
Enclosure : High compact, corrosion-proof PC (polycarbonate) resin
Construction : Hermetically sealed, fully waterproof
Dimensions : 90mm(D) X 110mm(H)
PA-07 Antenna Weight : 550g (with cable & connector)
Mounting : Pole mount to 1”-14 threaded pipe

Cable & Connector :

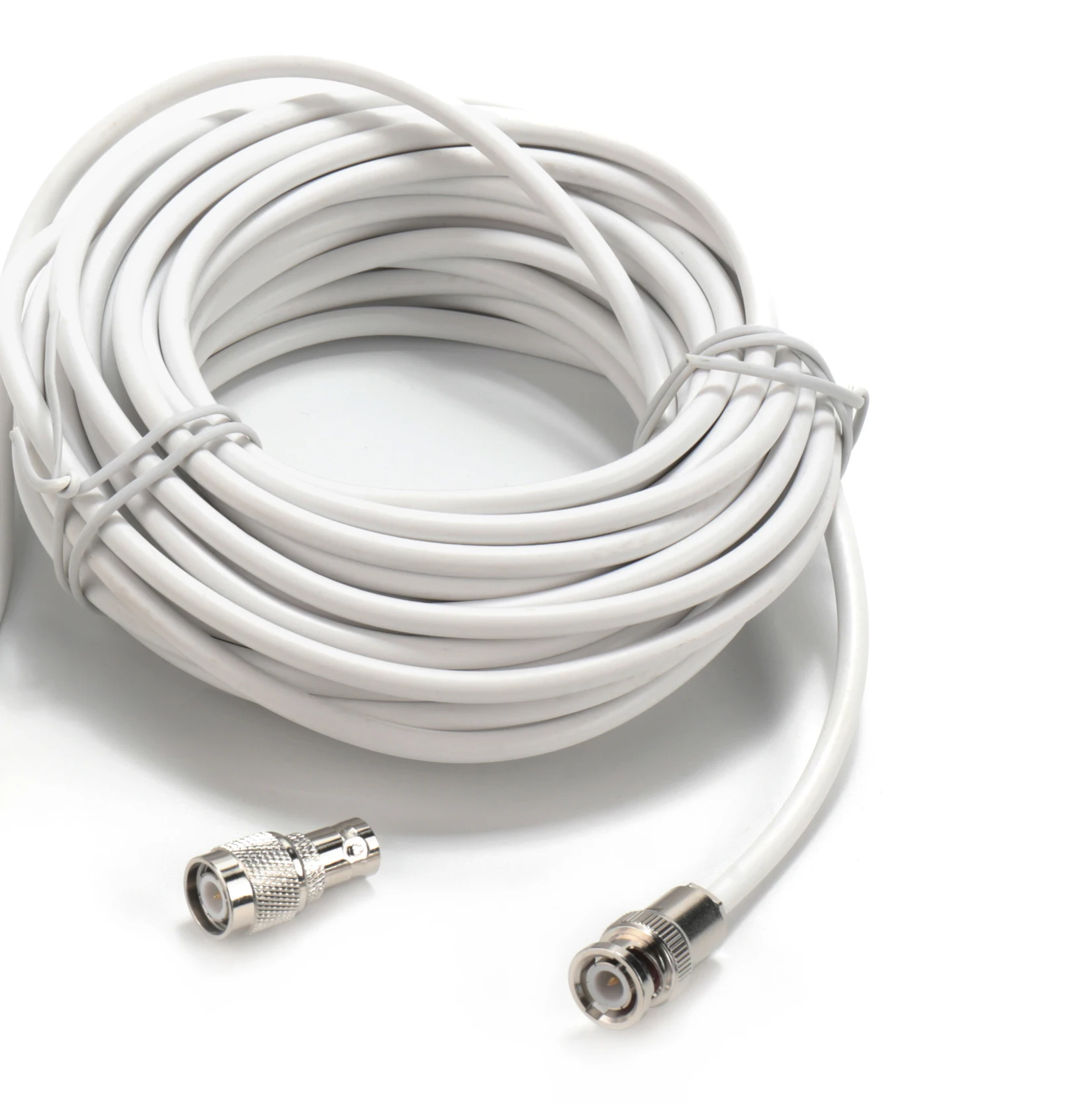

RF cable : 10m RG-59

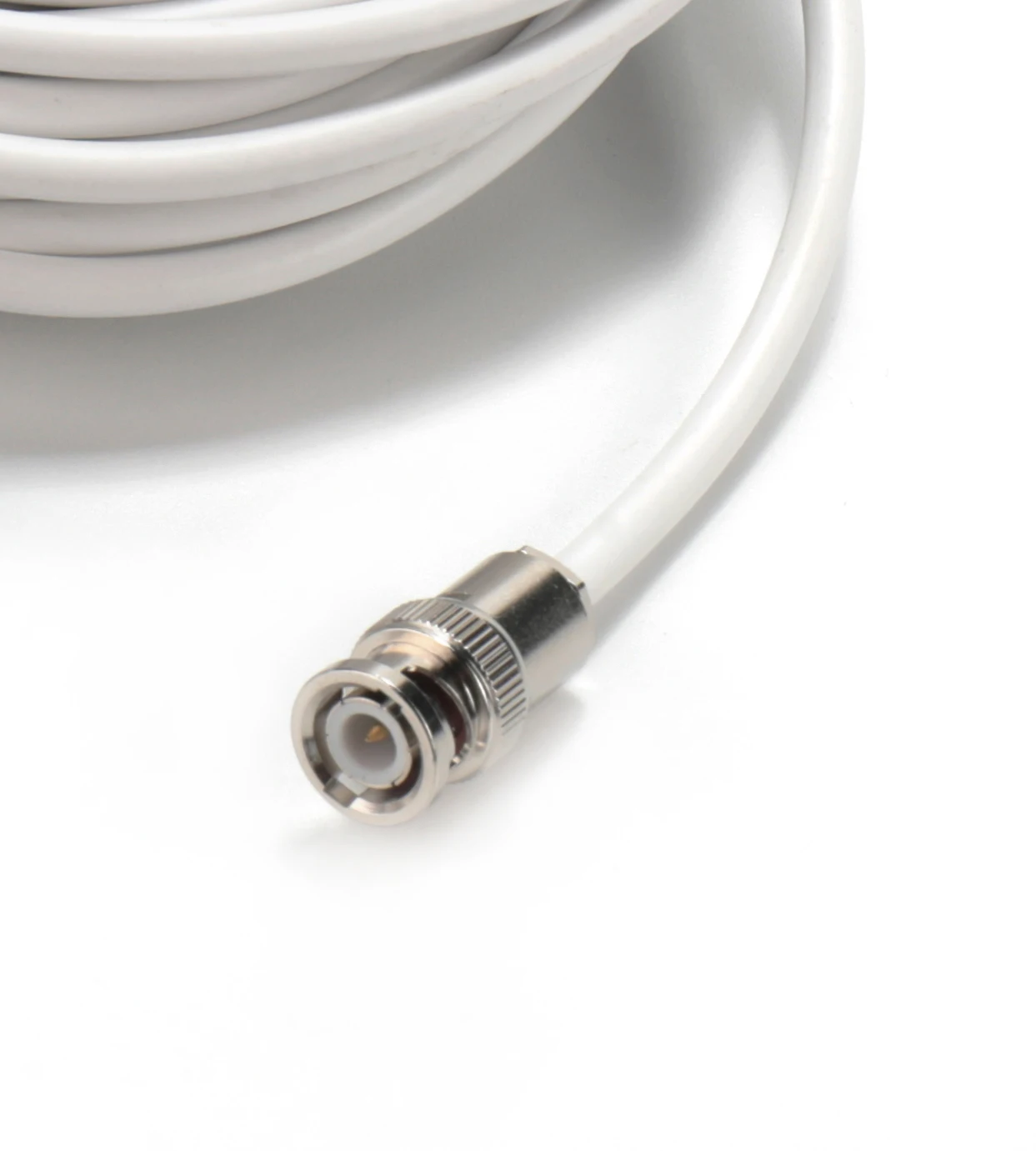

Connector : BNC connector supplied as standard

Environmental :
Operating temperature : -30°C ~ +85°C Storage temperature : -40°C ~ +90°C
Relative humidity : 95% non-condensing
Waterproof : 100% waterproof

Electrical:
A. Antenna Element
Center Frequency : 1575.42 Mhz ± 1.023Mhz
? Absolute gain zenith : +5dB typical
Absolute gain 10° : -1dB typical
Axial ratio : 3dB max
Output VSWR : 1.5 max
Output impedance : 50 ohm

B. Low Noise Amplifier
Center Frequency : 1575.42 Mhz
Power gain : 27dB typical
Band width : 2Mhz min.
Noise figure : 1.5 max
Out band attenuation : 20dB min @Fo ±50Mhz
Supply voltage : 3.3 ~ 5.0 VDC
Current consumption : Maximum 12mA
VSWR : 2.0 max
Output impedance : 50 ohm

C. Overall Performance (Antenna Element, LNA and Cable)
Center frequency : 1575.42 Mhz
Gain : 26 dB min ? Noise figure : 2.0 max
Band width : 2 Mhz min
Axial ratio : 3 dB max
VSWR : 2.0 max
Output impedance : 50 ohm



PLOSON PA-07 1 pcs Marine GPS Antenna with 10 meter cable BNC Male connector RF Cable 10m RG-59 TNC Interface Waterproofing IPX6
