ONWA KM-8C 8-inch GPS Chart Plotter with GPS Fish Finder/depth sounder/Echo sounder (supports Expanded Features)+fish transducer
with Map (Note: Chart of which sea is required)
KM-8C (New!)
8-inch GPS Chart Plotter Multi Function Display with Fish Finder
with Map (Note: Chart of which sea is required)
+ External GPS antenna

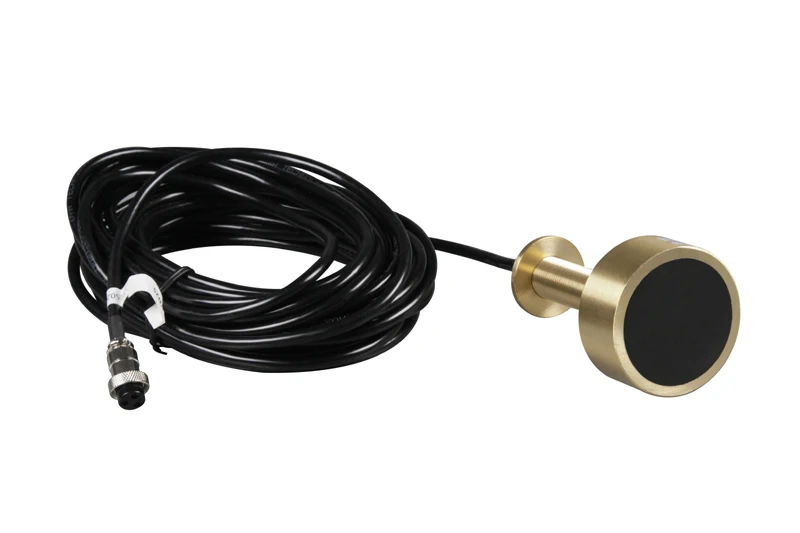

+ TD-25-T:metal fish transducer (+temperature, 6 Pin，Cable length:10M)

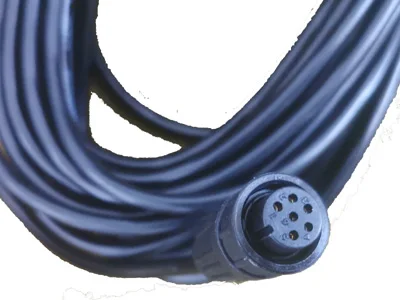

include：Cable length:10M , （copper）metal fish transducer
Echo Sounder Characteristics
Echo Color
16 colors (including background color) according to echo intensity. The background color is selectable from blue, light blue, white and black
Basic Range
Meters 5/10/20/40/80/150/200/300/600/1000
Feet 15/30/60/120/200/400/600/1000/2000/3000
Fathoms 3/5/10/20/40/80/150/300/600
*The basic ranges can be changed on the system menu.
Feet 15/30/60/120/200/400/600/1000/2000/3000
Fathoms 3/5/10/20/40/80/150/300/600
*The basic ranges can be changed on the system menu.
Range Shift
Up to 1000 meters (3000 feet,600 fathoms)
Zoom Range
Times 2,3,4 and 6 ranges
Bottom Lock Expansion Range
5/10 meters,10/20 feet,2/5 fathoms
Auto Mode
Automatic adjustment of range and gain
Display Mode
High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2 display on each),
Zoom (200K and 50K zoom) and A-scope Display
Zoom (200K and 50K zoom) and A-scope Display
Zoom Display
Marker Zoom, Bottom Zoom and Bottom-lock Expansion
Display Advance Speed
Lines/TX:Freeze, 1/8, 1/4, 1/2, 1/1, 2/1
TX Frequency
50 and 200kHz (alternately transmitted)
Power Output
600W (Up to 1kW by using High power Transducer)
Pulse-length/TX rate
Display End Depth (m) | 5 | 10 | 20 | 40 | 80 | 150 | 200 | 300 | 600 | 1000 |
Pulse-Length 200K(µs) | 120 | 220 | 320 | 520 | 920 | 1020 | 1020 | 1020 | 1020 | 1020 |
Pulse-Length 50K(µs) | 170 | 270 | 370 | 570 | 970 | 1070 | 1070 | 1070 | 1070 | 1070 |
TX Rate(pulse/min) | 2000 | 1333 | 706 | 353 | 171 | 98 | 75 | 53 | 38 | 27 |
TX period(millisecond) | 30 | 45 | 85 | 170 | 350 | 610 | 800 | 1120 | 1580 | 2200 |
Interference Rejecter
Rejects unwanted signals by comparing last and present echoes in strength.
Alarm
Fish and Bottom alarms,
Temperature alarm (sensor required)
Temperature alarm (sensor required)
NMEA0183 Sentence Supported
INPUT
(Auto scan Baudrate)
GGA, GLL, GSA, GSV, RMC, HDG, HDM, HDT
VTG, ZDA, MTW, VWR, VWT, MWD, VPW, VHW
TLL, TTM, VDO, VDM, GNS, MTA
RMA, DBT, DPT, MWV, BWC, XTE, ZDL, WPL, AAM,
APB, BOD, RMB, DSC, MDA, RPM, XDR
GGA, GLL, GSA, GSV, RMC, HDG, HDM, HDT
VTG, ZDA, MTW, VWR, VWT, MWD, VPW, VHW
TLL, TTM, VDO, VDM, GNS, MTA
RMA, DBT, DPT, MWV, BWC, XTE, ZDL, WPL, AAM,
APB, BOD, RMB, DSC, MDA, RPM, XDR
OUTPUT
Baudrate: Selectable 4800, 9600, 19200, 38400
GGA, GLL, RMC, GSA, GSV, AAM, APA
APB, BOD, BWC, BWR, DBT, DPT, HDT
MTW, RMB, TLL, VTG, WPL, XTE, ZDA
ZTG, ZDL, MWD, VPW, VWR, VWT
GGA, GLL, RMC, GSA, GSV, AAM, APA
APB, BOD, BWC, BWR, DBT, DPT, HDT
MTW, RMB, TLL, VTG, WPL, XTE, ZDA
ZTG, ZDL, MWD, VPW, VWR, VWT
OUTPUT for Autopilot
APA, APB, BOD, XTE
