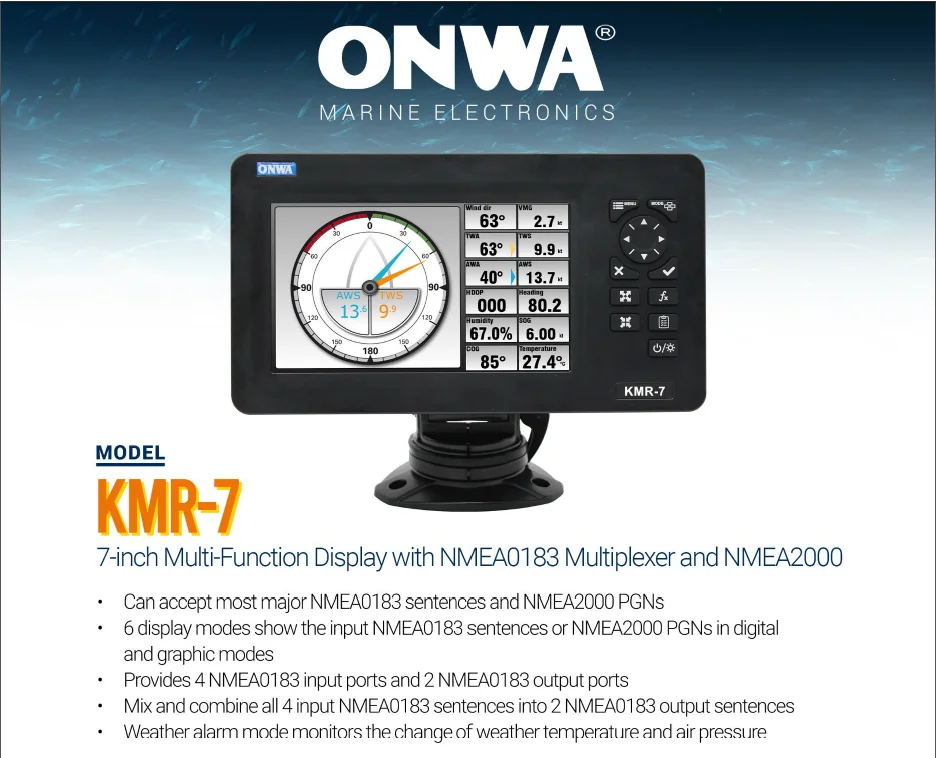

KMR-7 7-inch Multi-Function Display With NMEA0183 Multiplexer and NMEA2K multiplexer / Weather Station Anemometer Repeater

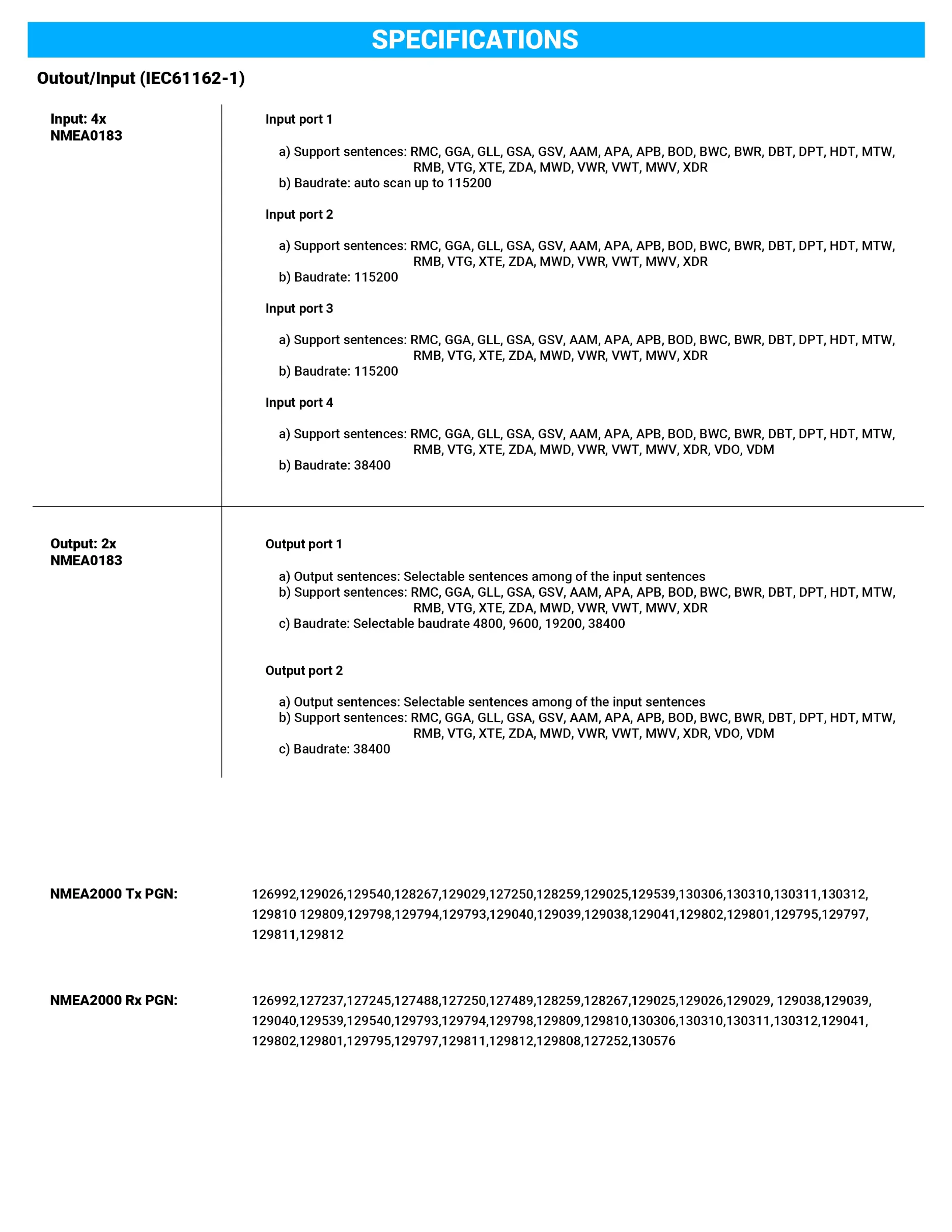

Input: 4 x NMEA0183

INPUT PORT 1
a) Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR
b) Baudrate: auto scan up to 115200
INPUT PORT 2
a) Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR
b) Baudrate: auto scan up to 115200
INPUT PORT 3
a) Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR
b) Baudrate: auto scan up to 115200
INPUT PORT 4
a) Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR, VDO, VDM
b) Baudrate: 38400

Output: 2 x NMEA0183

NMEA2000

OUTPUT PORT 1
a. Output sentences: Selectable sentences among of the input sentences
b. Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR
c. Baudrate: Selectable baudrate 4800, 9600, 19200, 38400
OUTPUT PORT 2
1. Output sentences: Selectable sentences among of the input sentences
2. Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR, VDO, VDM
3. Baudrate: 38400

Tx PGNs
126992,129026,129540,128267,129029,127250,128259,129025,129539,130306,130310,

130311,130312,129810,

129809,129798,129794,129793,129040,

129039,129038,129041,129802,129801,129795,129797,129811,129812
Rx PGNs
126992,127237,127245,127488,127250,127489,128259,128267,129025,129026,129029,
129038,129039,129040,129539,129540,129793,129794,129798,129809,129810,130306,
130310,130311,130312,129041,129802,129801,129795,129797,129811,129812,129808,
127252,130576

POWER SUPPLY

Electrical

10.5 – 32VDC

Power consumption

0.3A at 12VDC

Protection

overcurrent, overvoltage, power transient and accidental reverse polarity protection

ENVIRONMENTAL CONDITIONS

Ambient temperature

-15°C to +55°C

Humidity

93%±3% on 40°C

Waterproofing

IPX6

EQUIPMENT LIST

Standard
