NPC-150 AIS Pilot Plug data cable 3 Meter AIS Pilot Plug is an IMO Standard AIS Pilot Plug used for AIS RS422
NPC-150 ais pilot plug wifi electronic chart pilot interface to wireless adapter for marine rs485 device

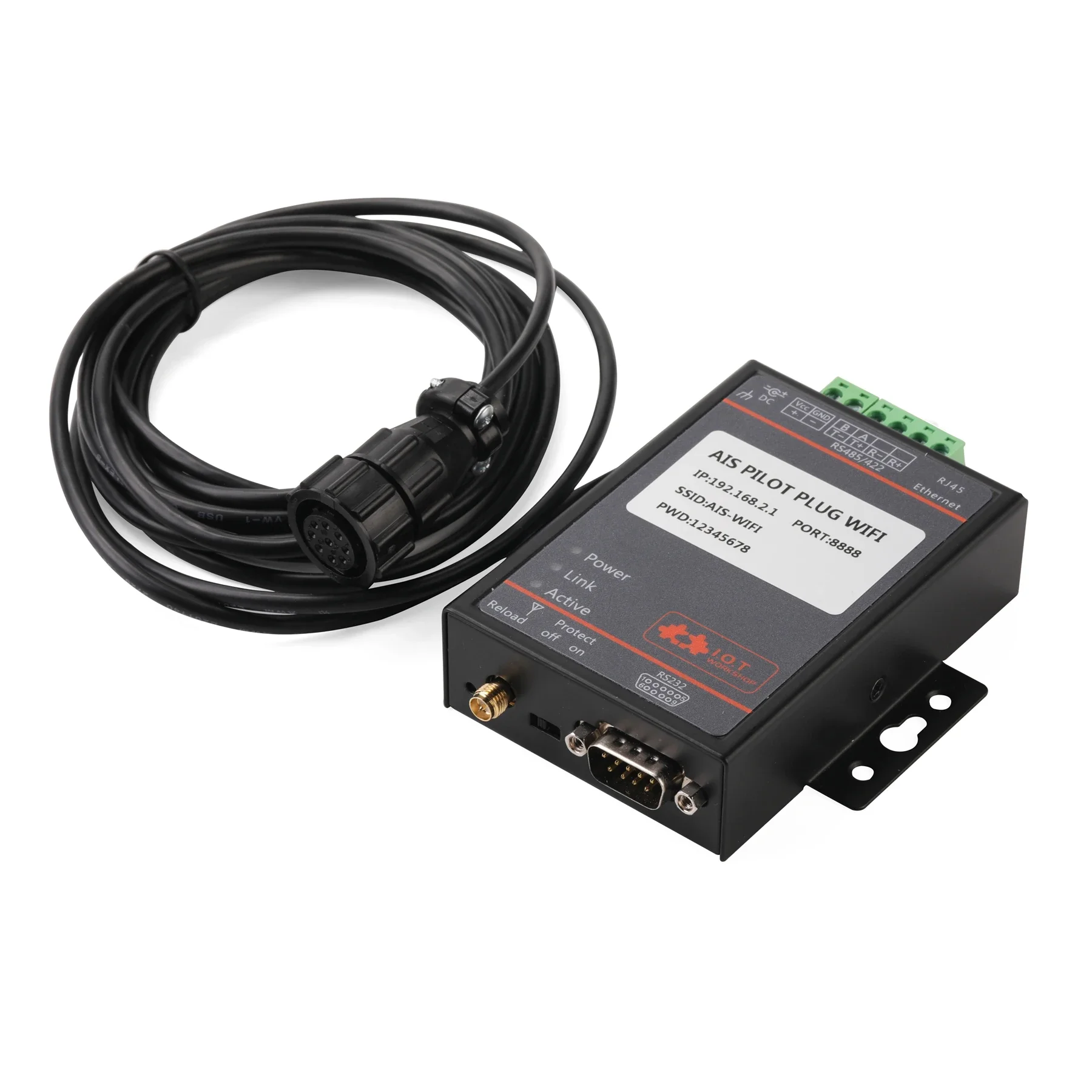

Marine AIS to WIFI wireless server:
It is used to connect the onboard AIS Pilotplug interface and transmit wireless AIS data to the upper WIFI terminal;
Transmit the dynamic information of the ship, including longitude and latitude, bow direction, track direction, speed, turning speed and receiving time;
Transmit the dynamic information of the ship, including longitude and latitude, bow direction, track direction, speed, turning speed and receiving time;
Transmit static information of the ship, including ship name, call sign, IMO number, ship type, captain, ship width, etc;
Transmit voyage related information, including navigation status, draft, destination port and ETA time.
1。 This product adopts aluminum alloy shell to ensure good heat dissipation; The theoretical launch distance is more than 200 meters, and the navigation information can also be monitored in the room. Due to the influence of the steel structure of the ship itself, the actual distance depends on the specific environment;
2。 High-quality and stable brand WIFI integrated chip module is used. The interface adopts the international AMP standard pilot interface and gold-plated terminal; Use RS422 serial port, compatible with RS232;
3。 It can simultaneously connect computers, IPAD, IPHONE, Android devices and other multiple clients to receive.
4。 Support one-key recovery with anti-tamper protection.
2。 High-quality and stable brand WIFI integrated chip module is used. The interface adopts the international AMP standard pilot interface and gold-plated terminal; Use RS422 serial port, compatible with RS232;
3。 It can simultaneously connect computers, IPAD, IPHONE, Android devices and other multiple clients to receive.
4。 Support one-key recovery with anti-tamper protection.
How do I connect to the WIFI server and receive AIS data?
1. Connect to the WIFI server, similar to connecting to the wireless router. Find the hot spot name and connect;
2. After connecting to WIFI, set the software on the mobile phone or computer, and the protocol for receiving data is TCP/IP.
2. After connecting to WIFI, set the software on the mobile phone or computer, and the protocol for receiving data is TCP/IP.

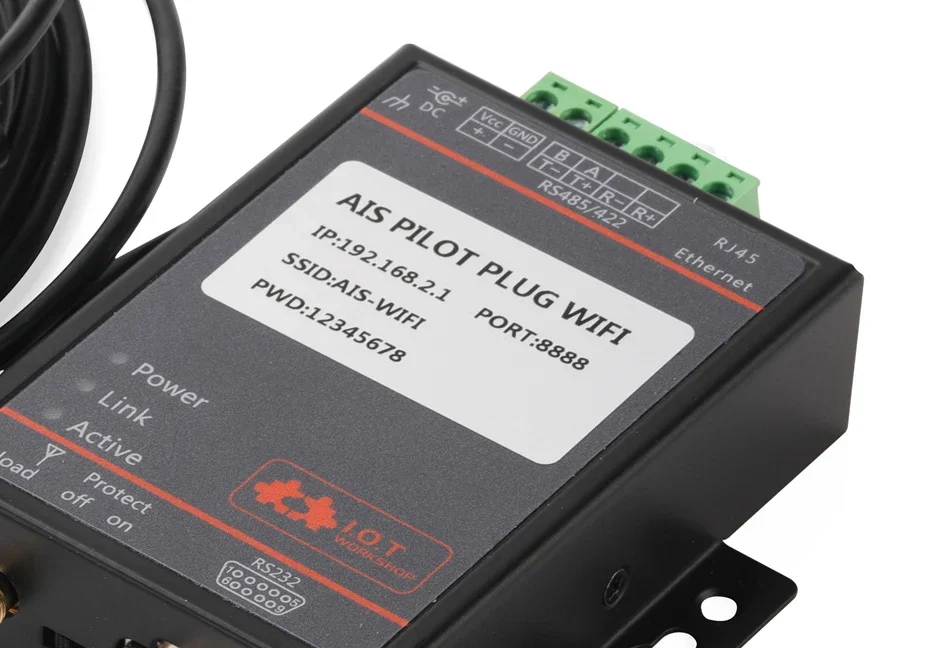

The IP address and port are as follows:
Hotspot: AIS-WIFI
Password: 12345678
IP address: 192.168.2.1
Port: 8888
If the configuration is correct, AIS information can be displayed on the electronic chart
Specification
As a crew member, I recommend this product to everyone, convenient and practical
In order to be more practical, this product uses an aluminum alloy shell to fully ensure heat dissipation, uses high-quality and stable WIFI integrated modules, and uses high-strength plastic fixation to ensure that the product is affected when the ship is bumped. The interface adopts the internationally accepted AMP standard pilot interface and brand new gold-plated terminals. (If the port with special requirements can be customized). The theoretical transmission and reception distance of WIFI is more than 200 meters, but due to the influence of the steel structure of the ship itself and the electromagnetic environment at that time, the transmission and reception distance depends on the specific environment. There is no problem with seamless coverage of the bridge. The number of theoretically connected computers, IPADs, and mobile phones is more than 20, but due to the data speed limit provided by AIS, when there are too many devices, it will affect the speed of its use. There is no problem when testing 10 computers.
The global electronic chart provides installation guidance, mainly to cooperate with the equipment of our shop, connect gps and ais, etc. to intuitively realize ship navigation and increase the safety of navigation. Provide suggestions for different system solutions for the crew and solve various problems in the process of system compatibility and hardware equipment connection.

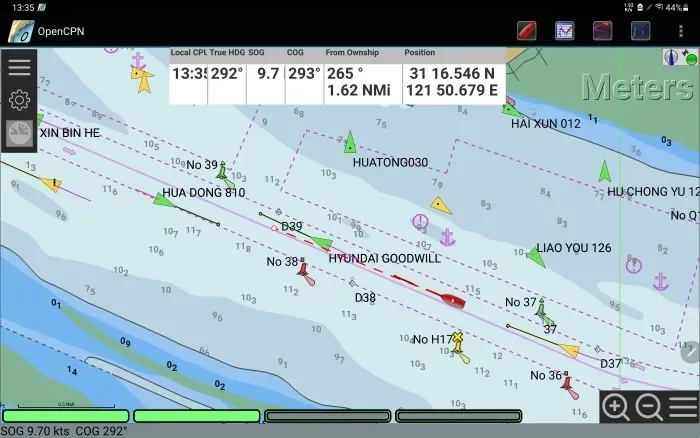

The following is the effect of connecting the electronic chart on the computer:
