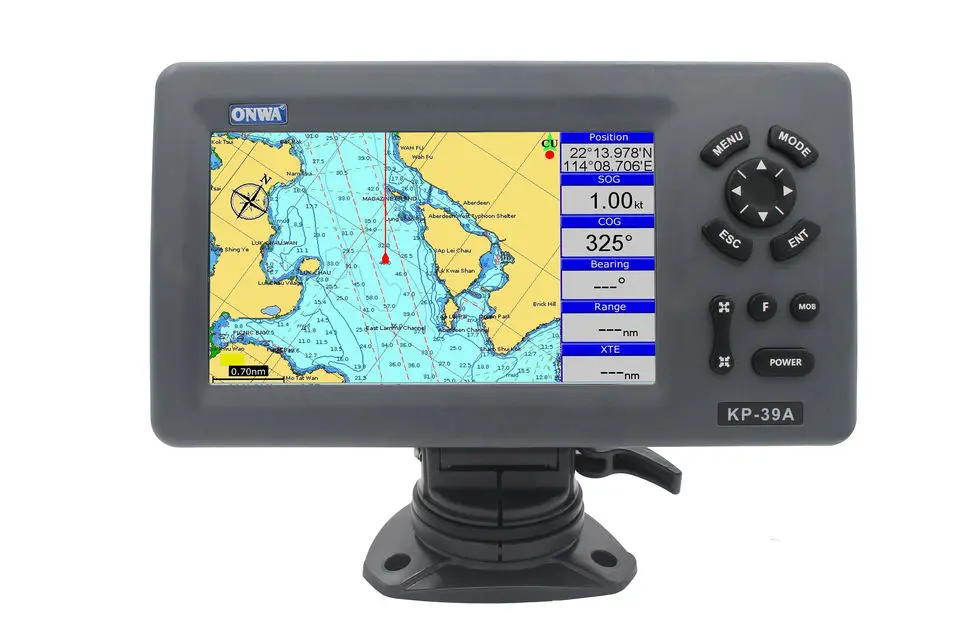

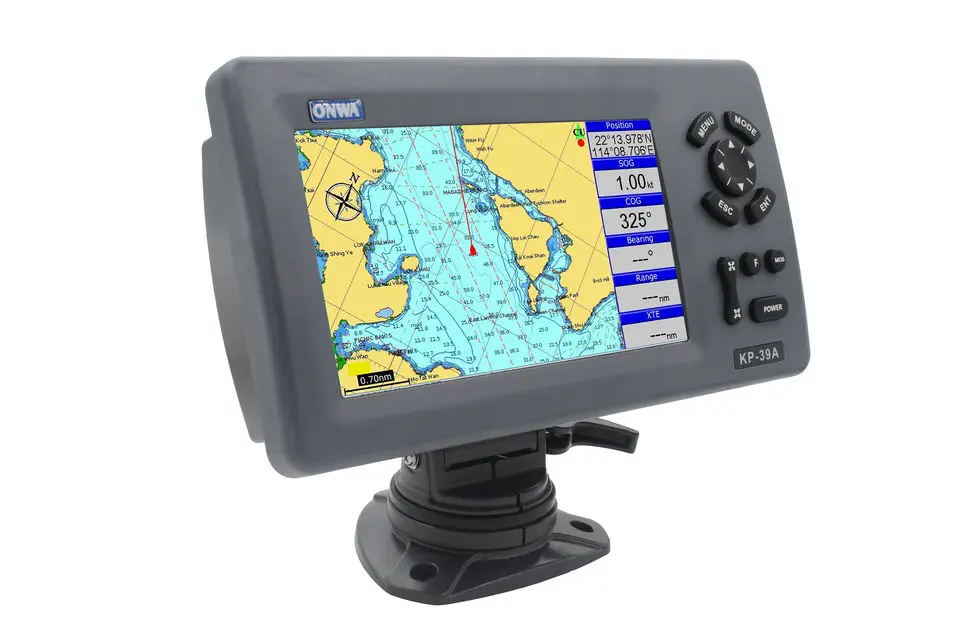

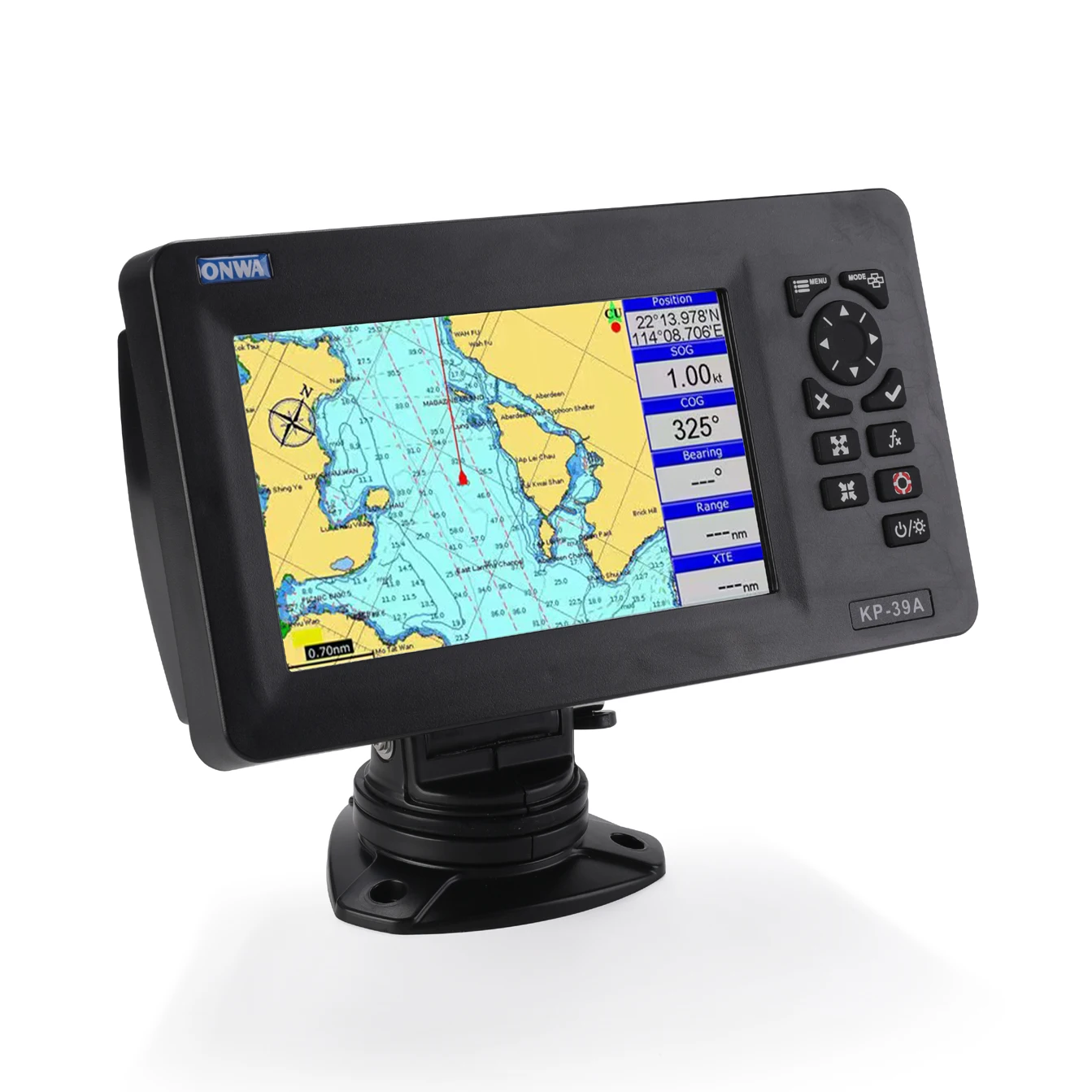

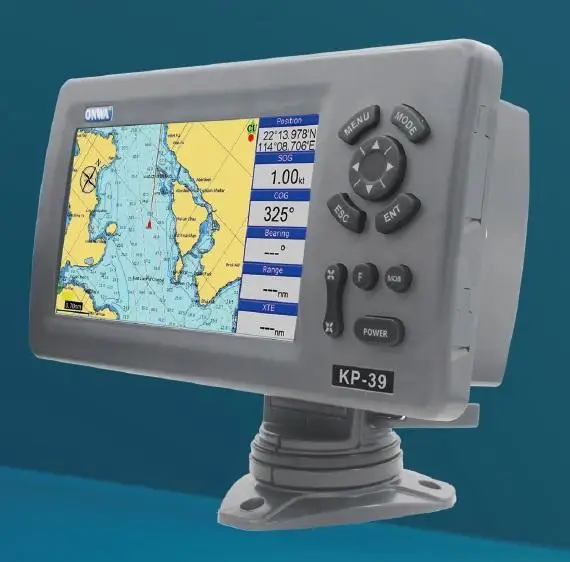

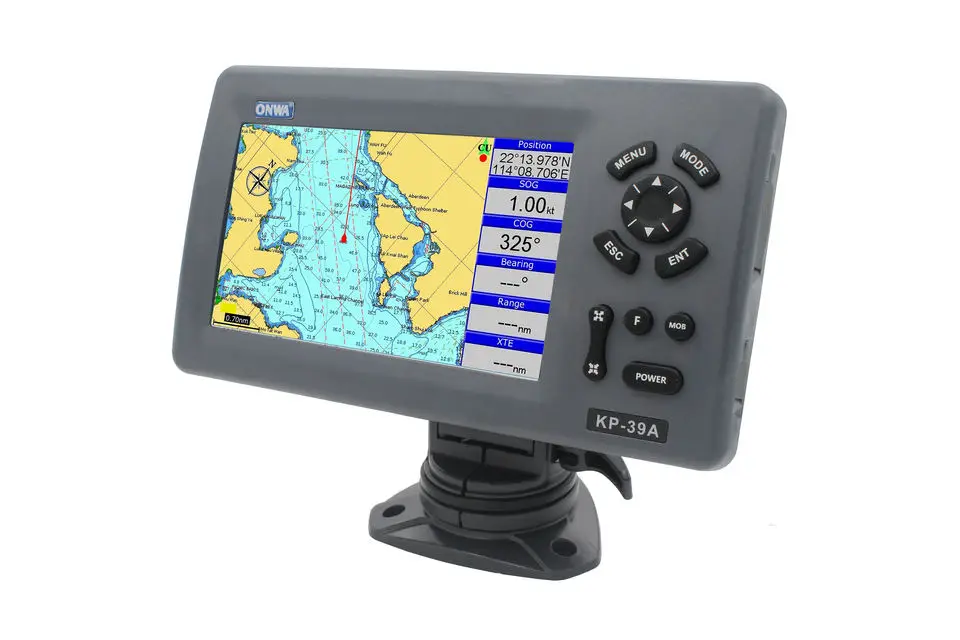

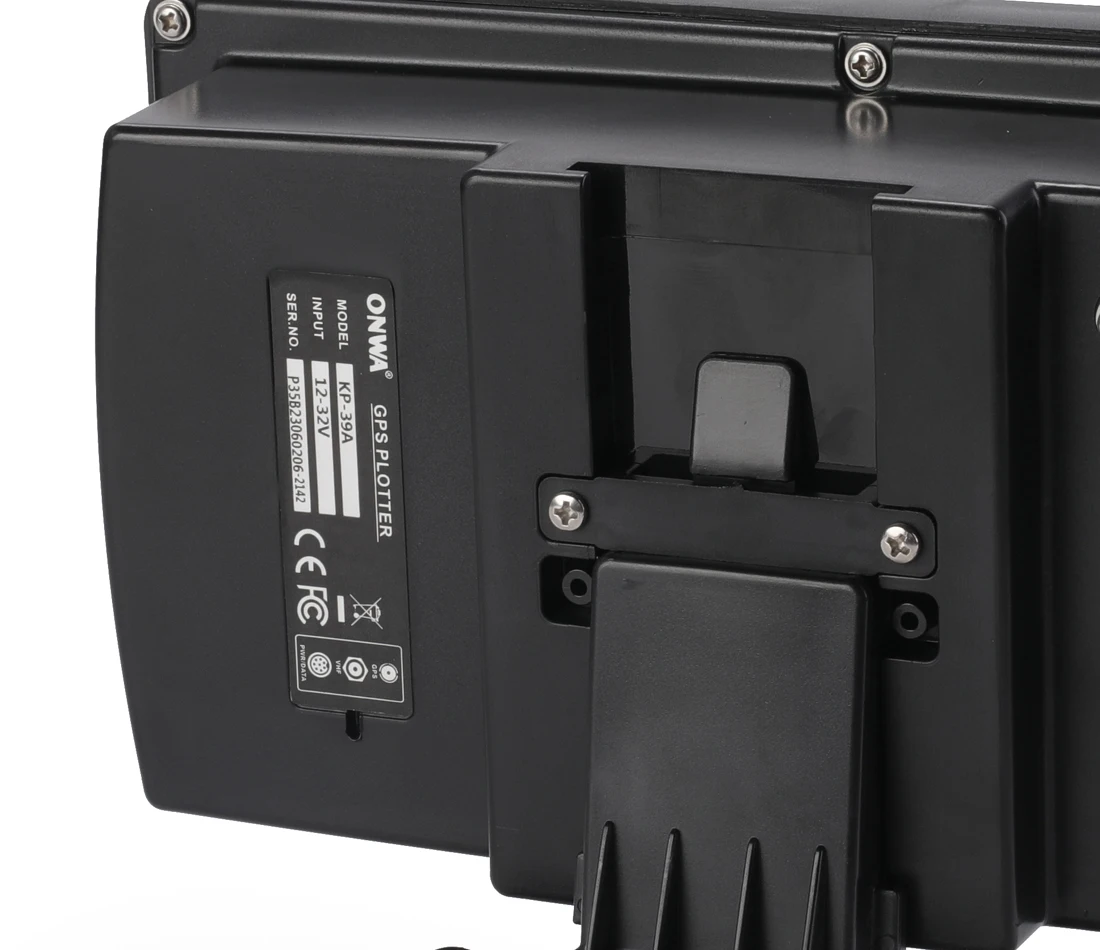

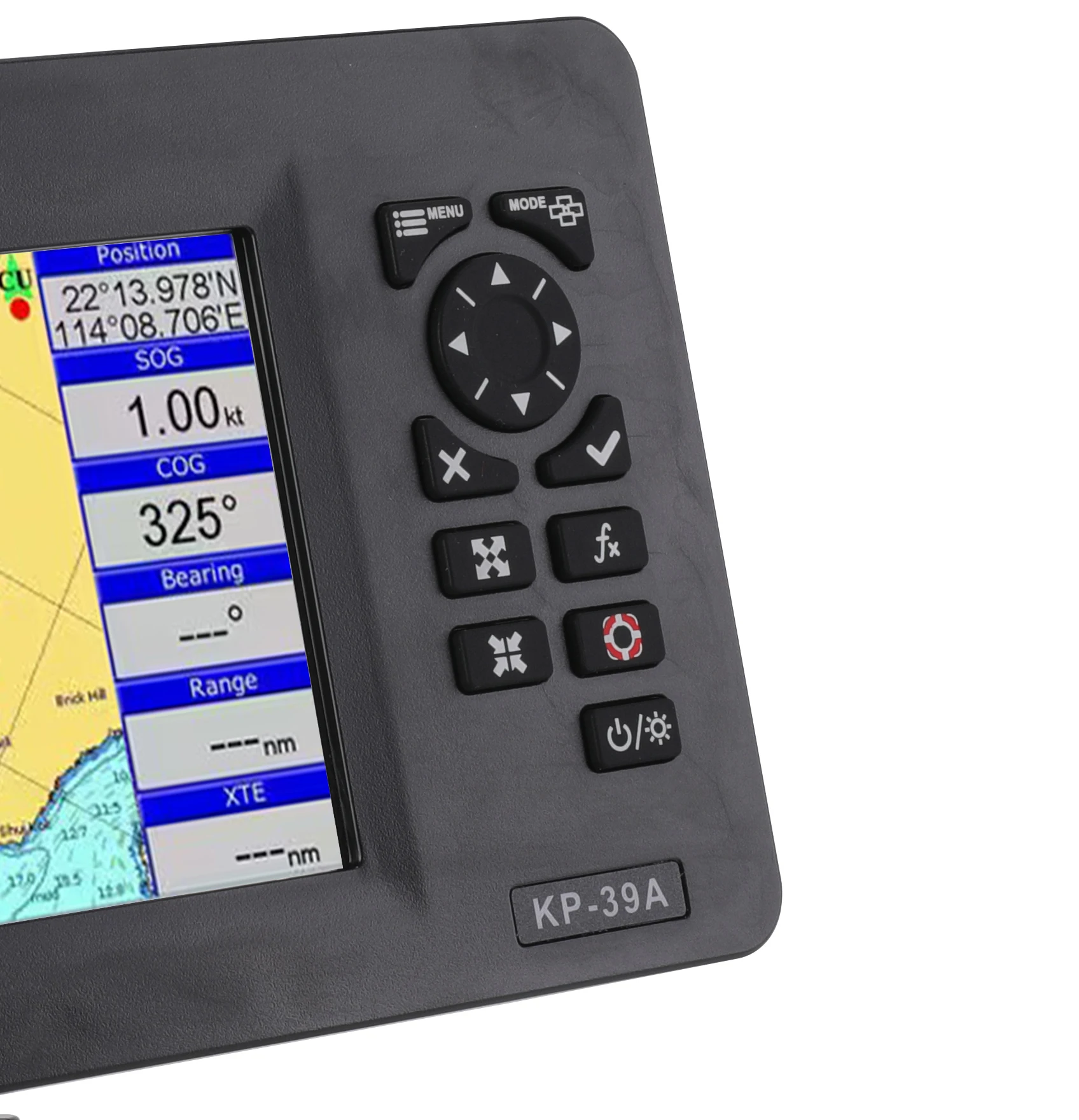

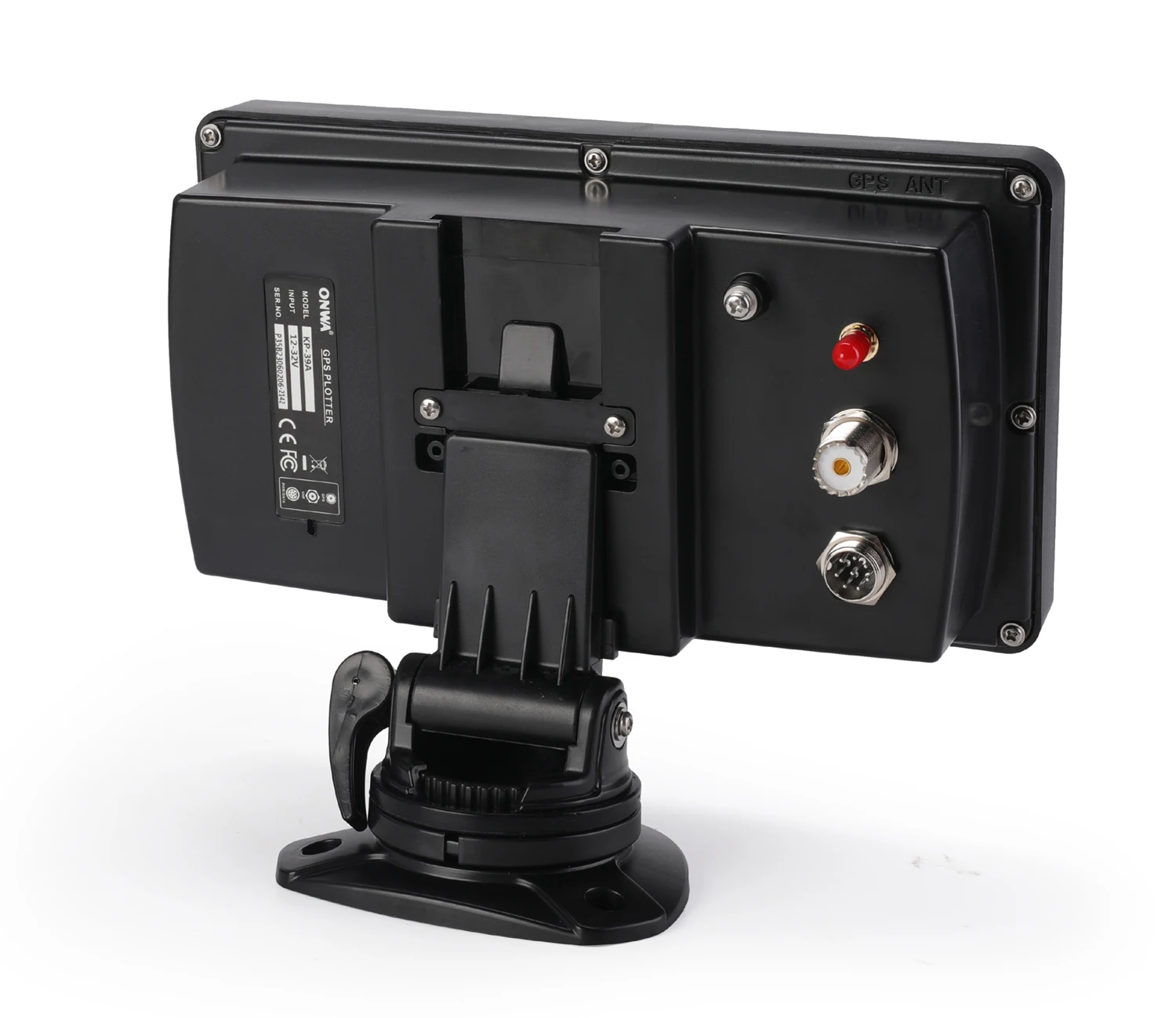

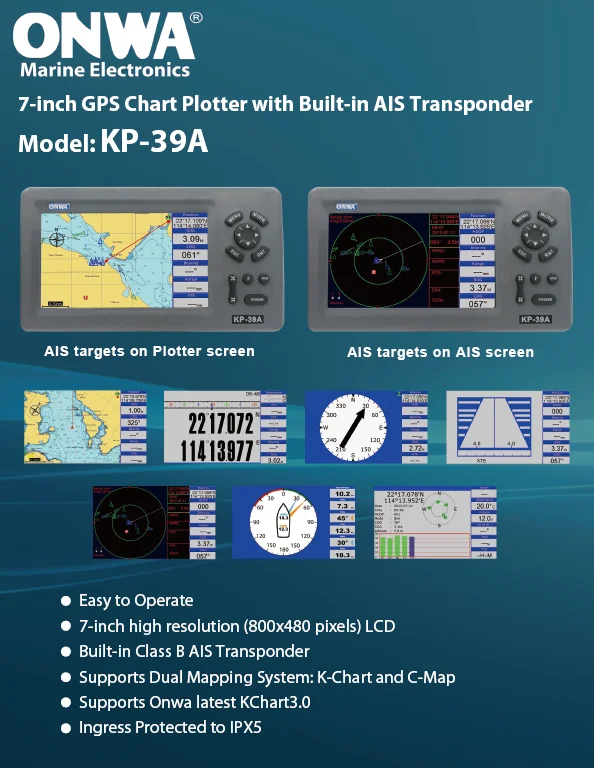

ONWA KP-39A 7-inch Color LCD GPS Chart Plotter with GPS Antenna and Built-in Class B AIS Transponder Combo Marine GPS Navigator

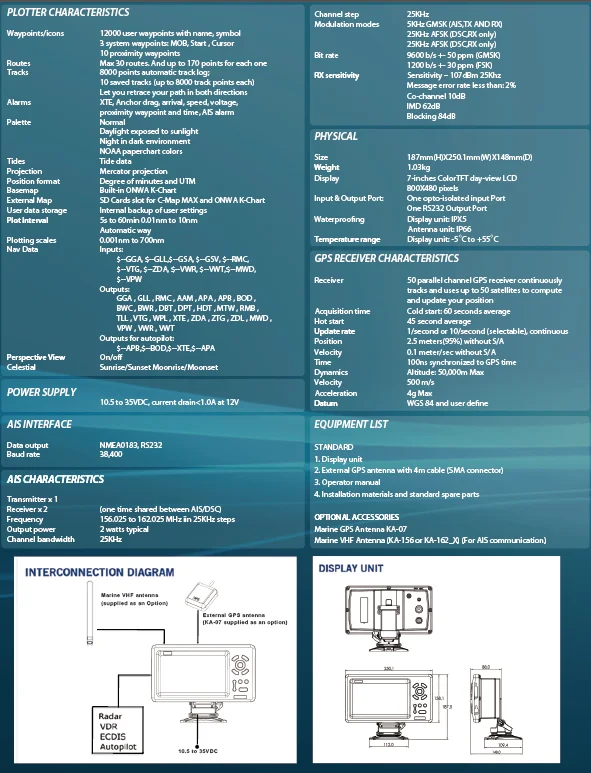

1. WAYPOINTS/ ICONS

12,000 user waypoints with name, symbol,
3 system waypoints: MOB,Start,cursor
10 proximity waypoints

2. ROUTES

Max: 30 routes and up to 170 points for each one

3. TRACKS

8,000 point automatic track log; 10 saved tracks (up to 8000 track points each).      Lets you retrace your path in both directions

4. ALARMS

XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,AIS alarm.

5. PALLETE

1. Normal

2. Daylight exposed to sunlight

3. Night in dark environment

4. NOAA paperchart colors


6. TIDES

Tide data

7. PROJECTION

Mercator projection

8. POSITION FORMAT

Degree of minutes and UTM

9. BASEMAP

Built-in Onwa K-Chart

10. EXTERNAL MAP

SD Cards slot for C-Map MAX and ONWA K-Chart

11. USER DATA STORAGE

Internal backup of user settings

12. PLOT INTERVAL

5s to 60min. 0.01nm to 10nm
Automatic way

13. PLOTTING SCALES

 0.001nm to 1,000nm

14. NAV DATA

Inputs:
$–GGA, $–GLL,$–GSA, $–GSV,$–RMC,
$–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPWOutputs:

GGA,GLL,RMC,AAM,APA,APB,BOD,
BWC, BWR,DBT,DPT,HDT,MTW,RMB,
TLL,VTG,WPL,XTE,ZDA,ZTG,ZDL,MWD,
VPW,VWR,VWT

Outputs for autopilot:
$–APB,$–BOD,$–XTE,$–APA

15. PERSPECTIVE VIEW

On/off

16. CELESTIAL

Sunrise/Sunset Moonrise/Moonset

POWER SUPPLY

10.5 to 35VDC, current drain<1.0A at 12V

PHYSICAL

1. SIZE

187mm(H) X 250.1mm(W) X 148mm(D)

2. WEIGHT

1.03kg

3. DISPLAY

4-inch Color TFT dayview LCD,800×480 pixels

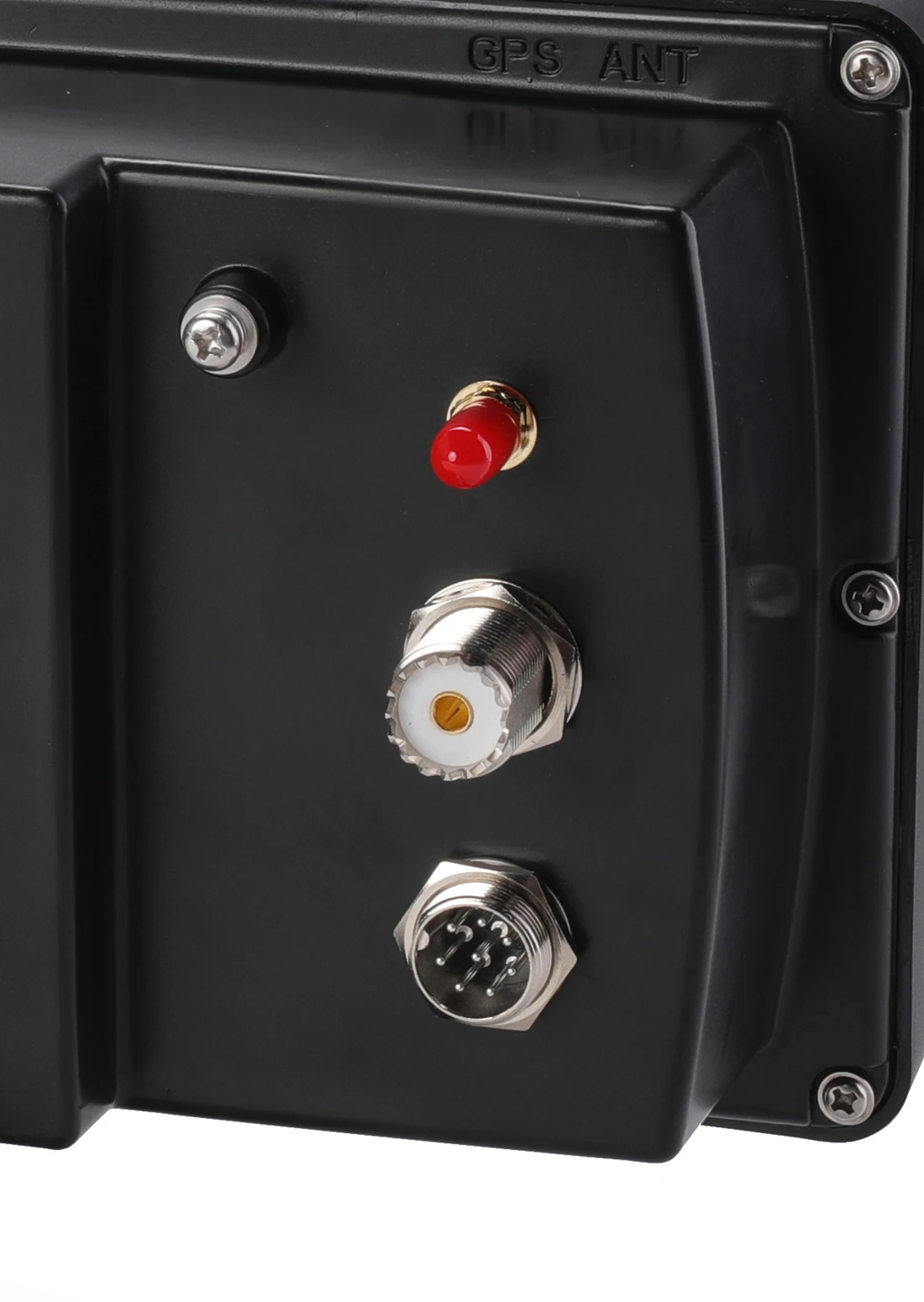

4. INPUT & OUTPUT PORT

One opto-isolated input Port
One RS232 Output Port

5.WATERPROOFING

Display unit: IPX5
Antenna Unit IP66

6.TEMPERATURE RANGE

Display unit: -5℃ to +55℃

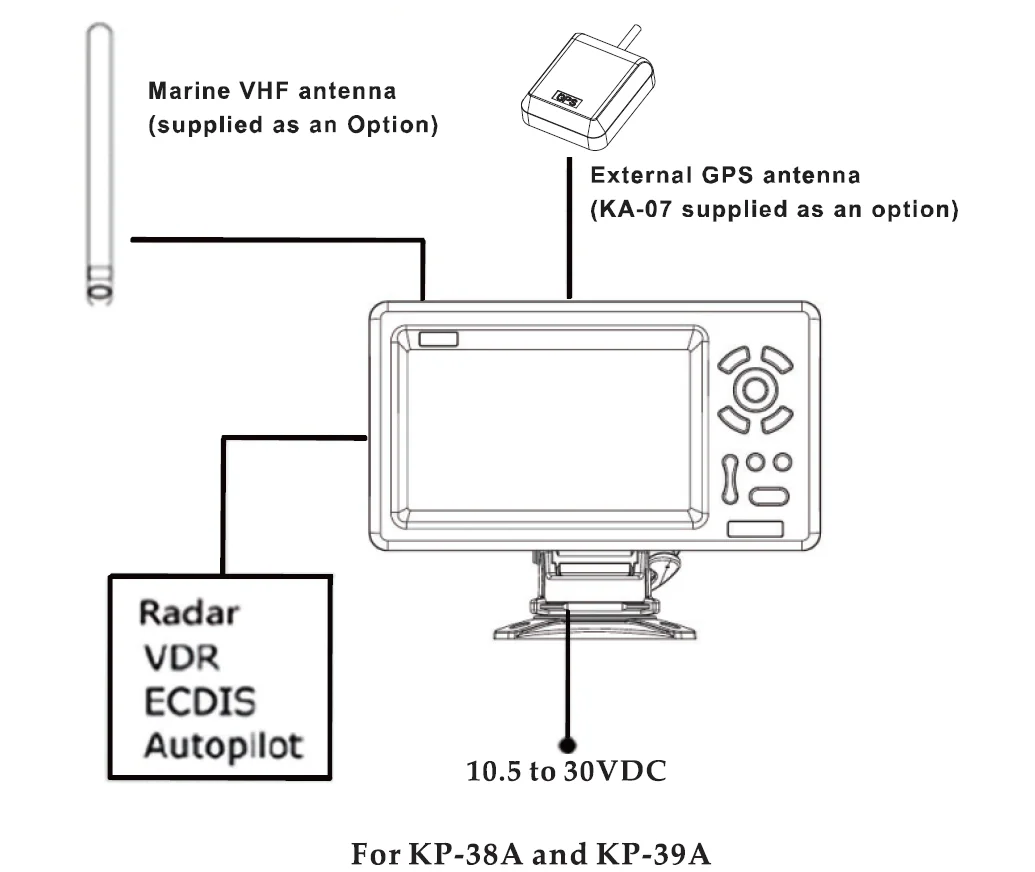

AIS INTERFACE

DATA INPUT

NMEA 0183 , RS232

BAUD RATE

38,400

AIS CHARACTERISTICS

TRANSMITTER X 1

RECEIVER X2

one time shared between AIS/DSC

FREQUENCY

156.025 to 162.025 MHz in 25kHz steps

OUTPUT POWER

2 watts typical

CHANNEL BANDWITH

25 kHz

CHANNEL STEP

25 KHz

MODULATION MODES

5 kHz GMSK (AIS, TX and RX)
25 KHz AFSK (DSC, RX only)
25 KHz AFSK (DSC, RX only)

BIT RATE

9600 b/s +- 50 ppm (GMSK)
1200 b/s +- 30 ppm (FSK)

RX SENSITIVITY

Sensitivity -107 dBm 25 kHz
Message error rate less than: 2%
Co-Channel 10dB
IMD 62 dB
Blocking 84 dB

GPS RECEIVER CHARACTERISTICS

RECEIVER

50parallel channel GPS receiver continuously Tracks and uses up to

50 satellites to compute and update your position

ACQUISITION TIME

Cold start: 60 seconds average

HOT START

45 seconds average

UPDATE RATE

1/second or 10/second (selectable) , continuous

POSITION

2.5 meters (95%) without S/A

VELOCITY

0.1 Meter/sec without S/A

TIME

100ns synchronized to GPS time

DYNAMICS

Altitude: 50,000m Max

VELOCITY

500 m/s

ACCELERATION

4g Max

DATUM

WGS 84 and user define

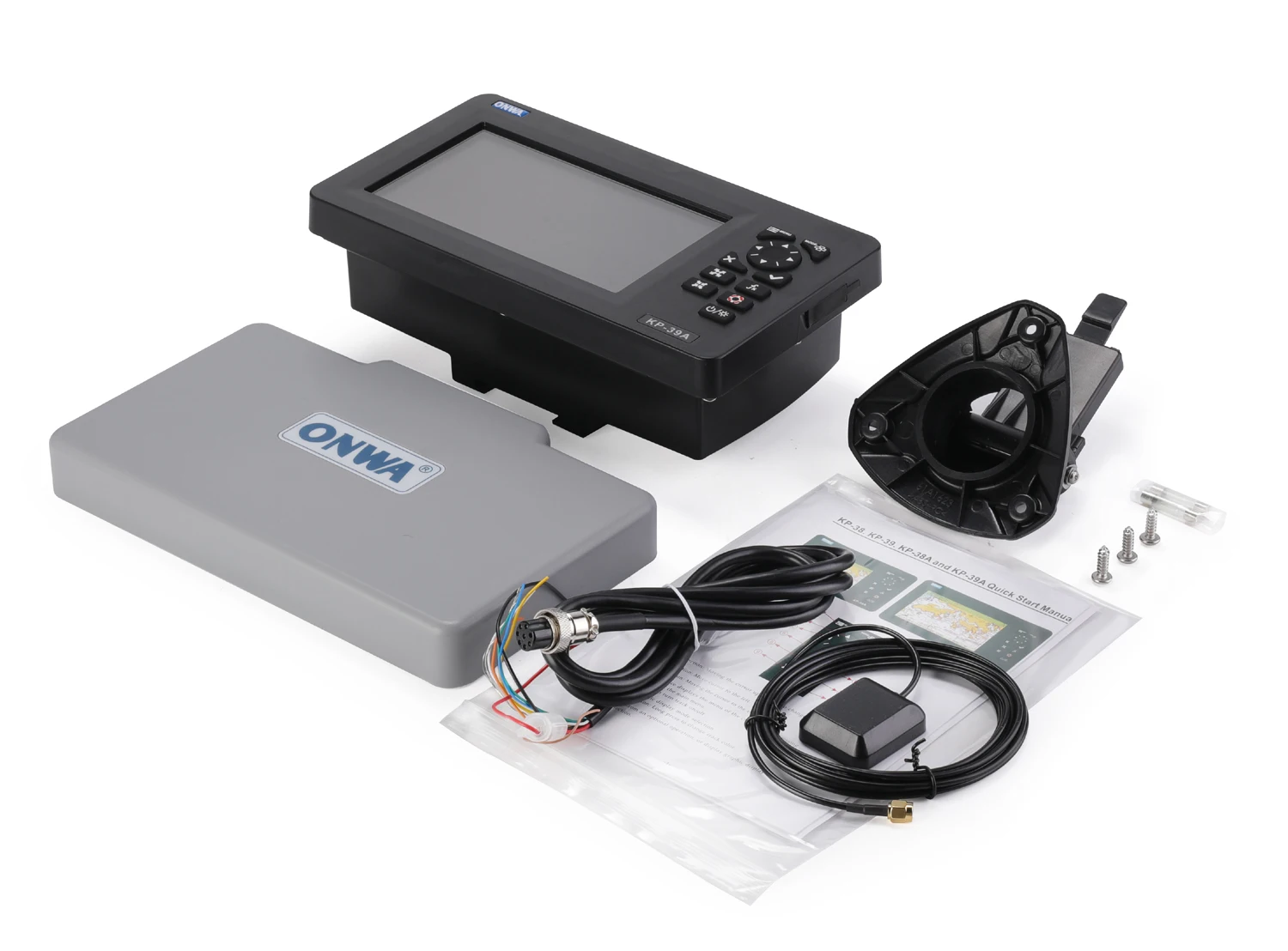

EQUIPMENT LIST

STANDARD

1. Display unit

2. Operator manual

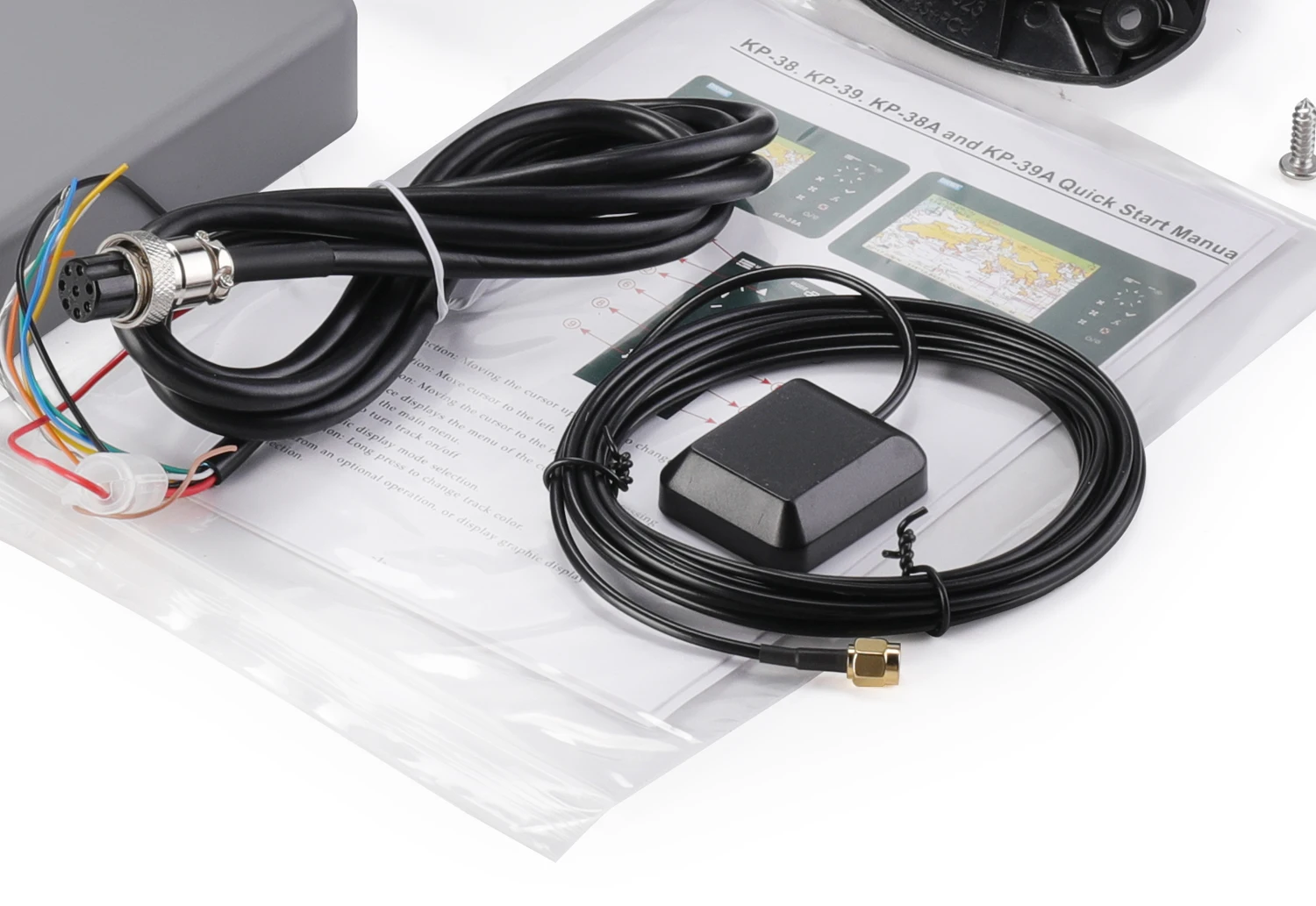

3. External GPS Antenna with SMA connector

4. Installation materials and standard spare parts


OPTIONAL ACCESSORIES:
** KA-07 (Marine GPS Antenna)
** KA-156 or KA-162_X (Marine VHF Antenna) (For AIS Communication)
