Product Center

——

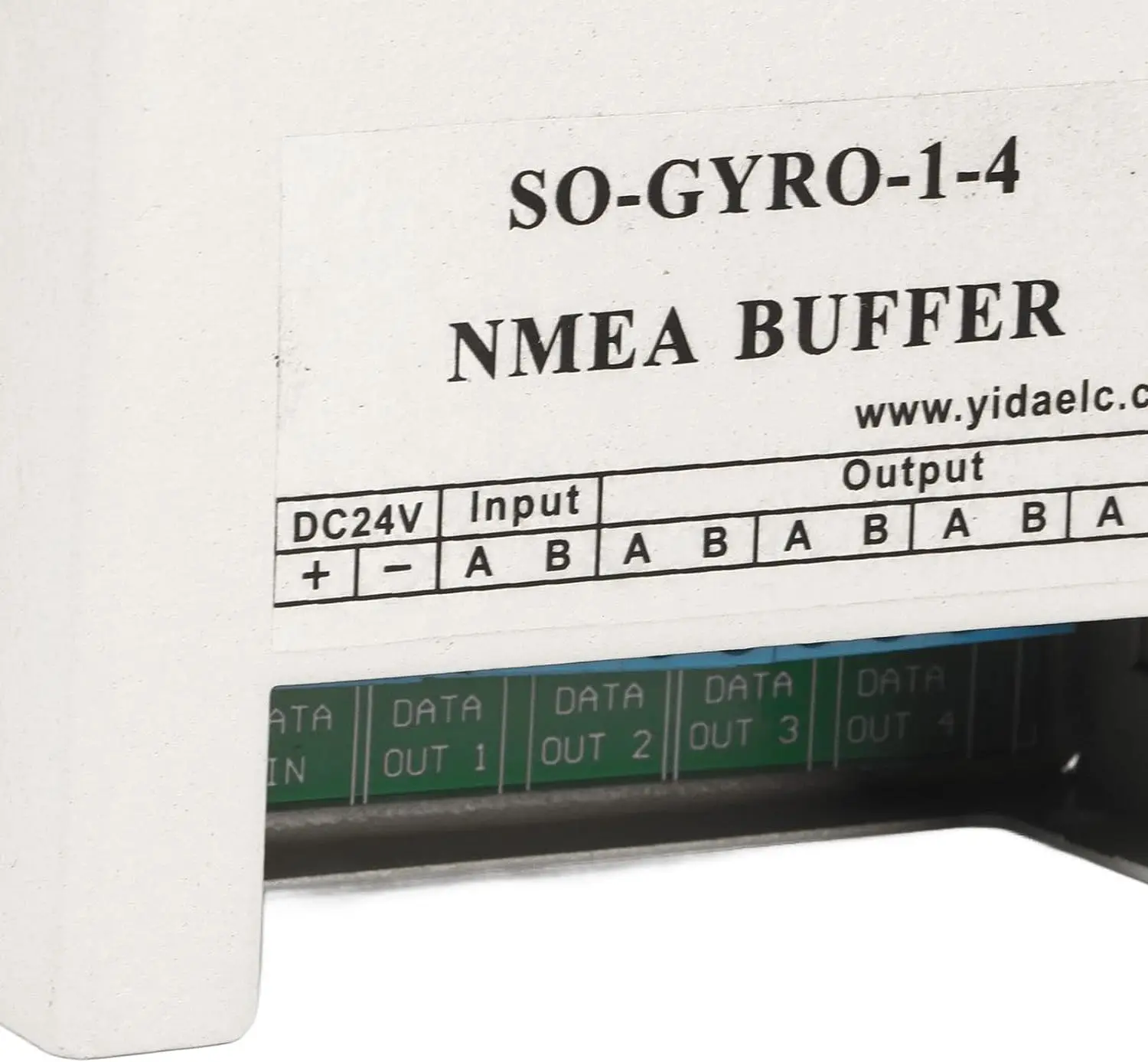

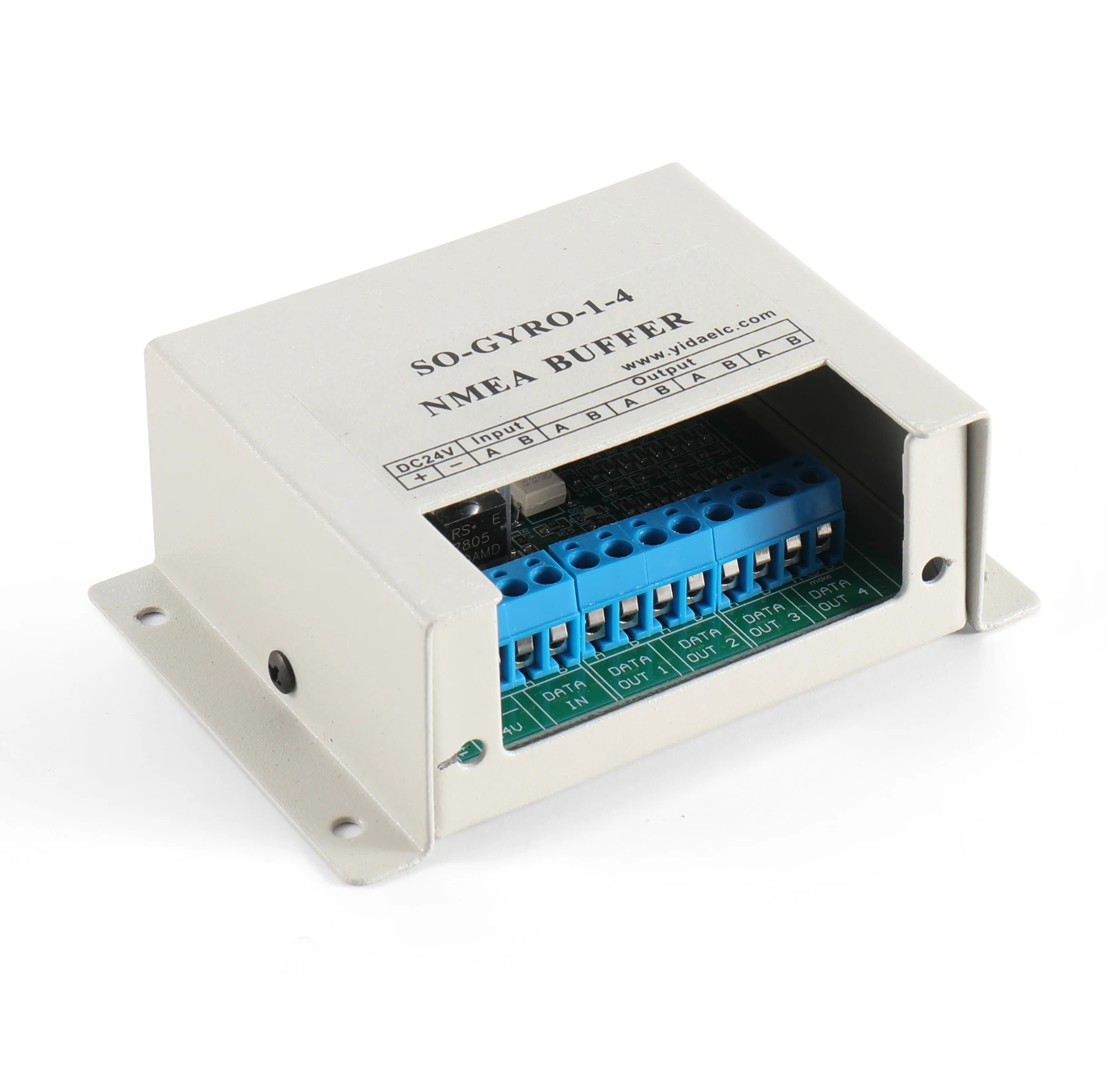

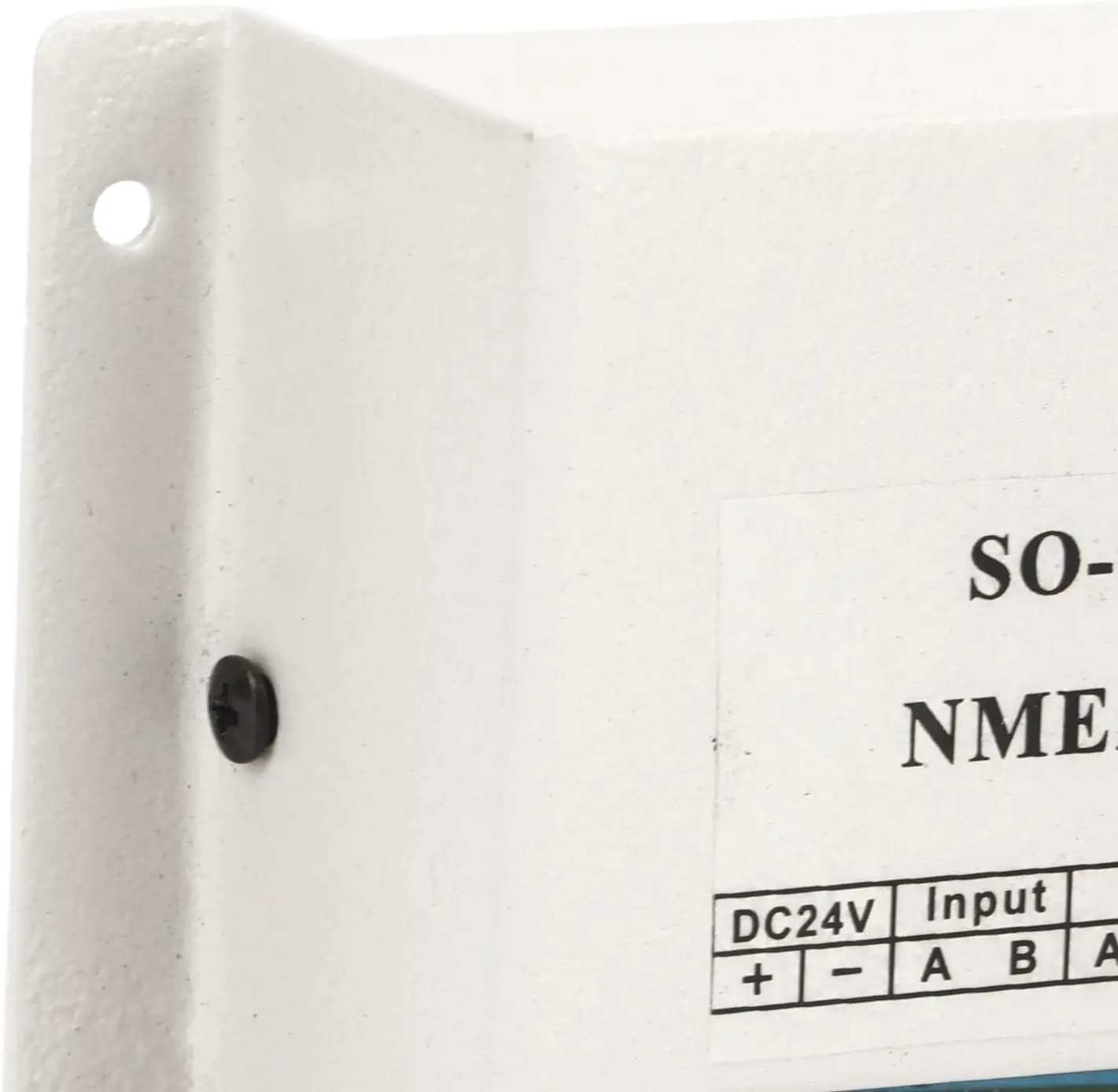

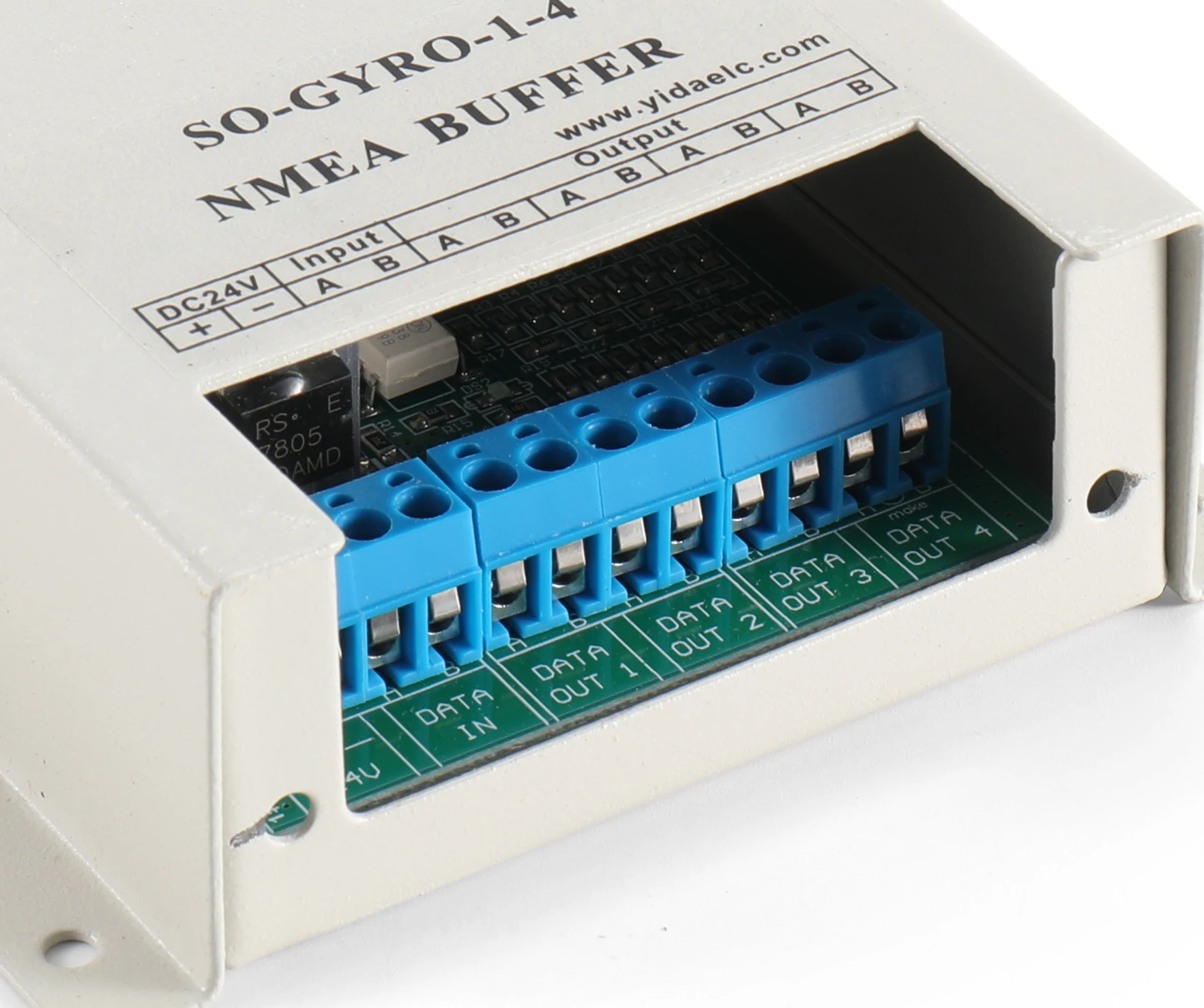

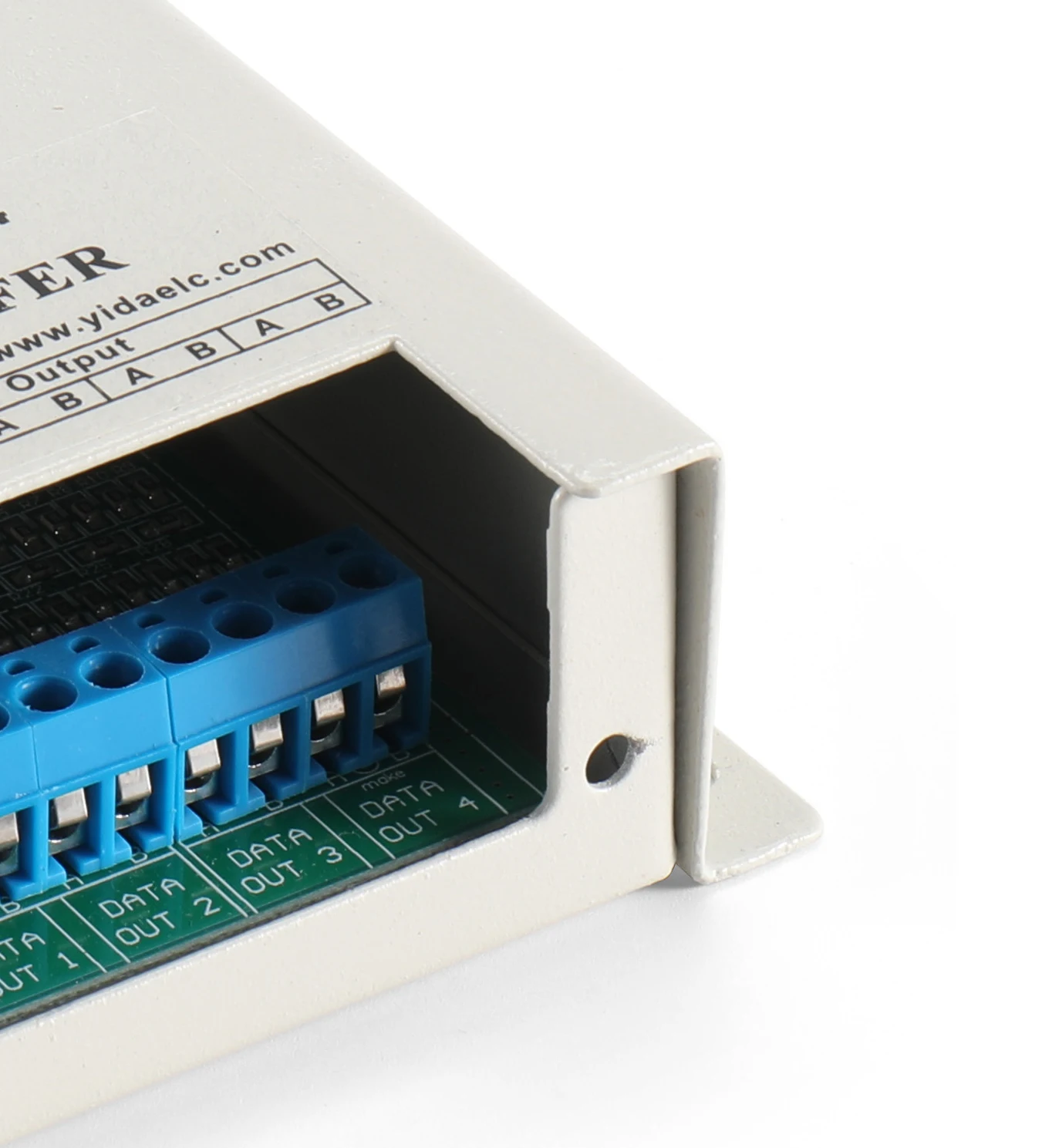

PLOSON PN-SP2 NMEA0183 NMEA Buffer NMEA 1 input, 4 output Marine Serial Line Splitter Isolating Buffer for 24V Circuit Systems

Graphic
Detail

PLOSON PN-SP2 NMEA0183 NMEA Buffer NMEA 1 input, 4 output Marine Serial Line Splitter Isolating Buffer for 24V Circuit Systems

Buffer for NMEA Buffer Box for NMEA Buffer 1 in 4 Out Marine Serial Line Splitter Isolating Buffer Converter Interface for 24V Circuit Systems

Input Signal ---- 4 input ports, supports up to 115,200bps, selectable auto manual switching by external switch, selectable primary secondary input by external switch. Professional manufactured, exquisite workmanship with unique design, ensure stable performance and high reliability.

Safe Operation ---- The marine serial line splitter supports over

Product Detail

1. Features

1) Three Operation Modes

2) Auto/Manual Input Switching by using External Switch
3) Auto Baud Rate detection
4) Supports Input and Output Baud Rate up to 115,200bps

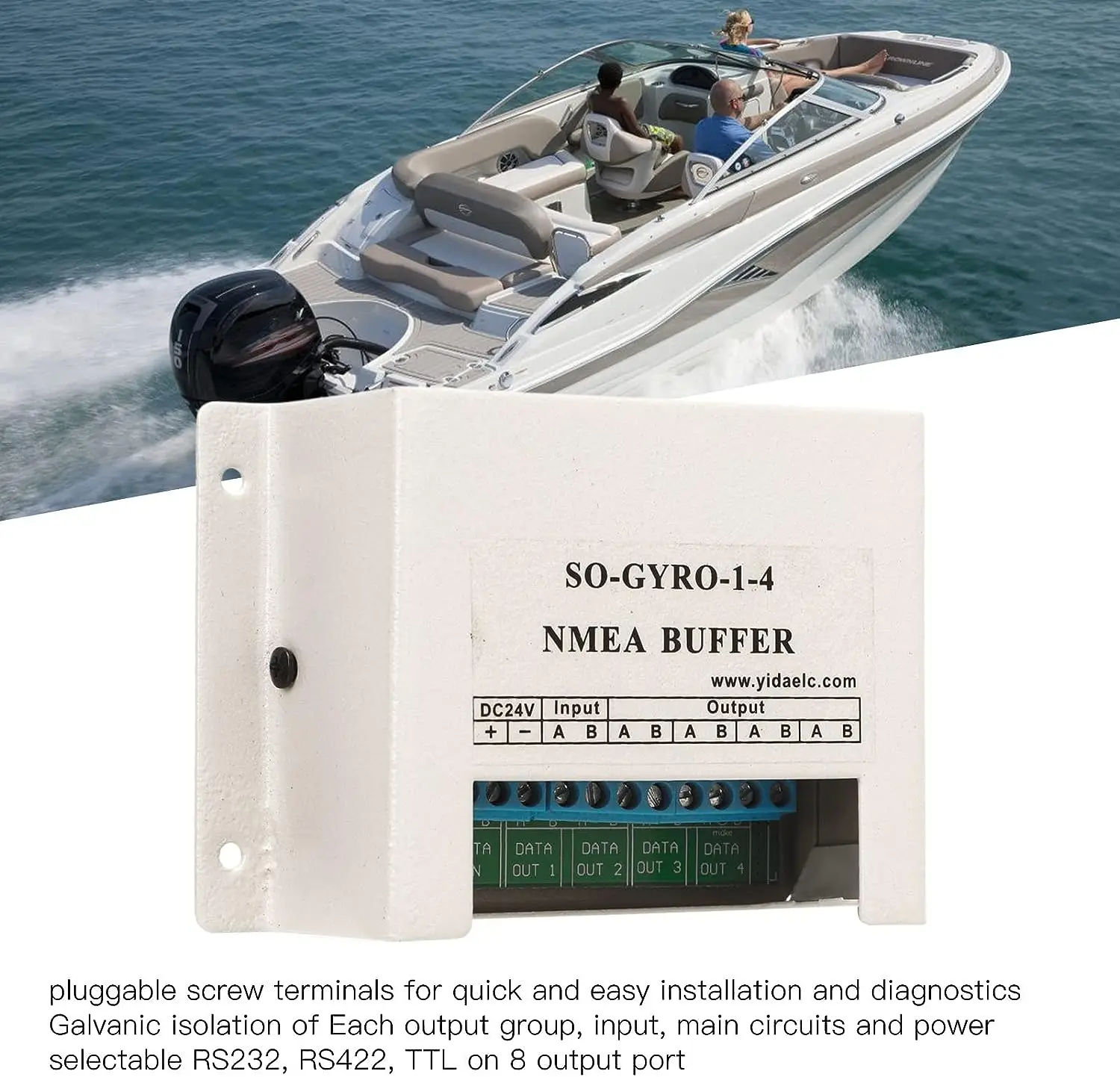

5) Galvanic Isolation of Each output group, Each input, Main circuits and Input power each other
6) Selectable one of RS232 / RS422 / TTL on 8 Output port(Grp#2 and Grp#4, Other 8ch are fixed as RS422)

2. Electronic Specifications

1) Modes
Mode-1	1 Unit x 16 Outputs Buffer(2 Inputs)
Mode-2	2 Units x 8 Outputs Buffers(Each 2 Inputs)
Mode-3	4 Units x 4 Outputs Buffers(Each 1 Input)
2) Input Signal
Input	4 Input Ports Galvanic Isolation Supports up to 115,200bps Selectable Auto/Manual switching by using External Switch Selectable Primary/Secondary Input by using External Switch
3) Output Signal
Output	16 Output Ports Galvanic Isolation of Each output group Supports up to 115,200bps 8ch Output Ports support RS232/RS422/ TTL Signal(Selectable by jumper)
4) Display
Red LED	Input Power
4 Green LEDs	Input Data Status of Each Input Port
5) Protection
Input Port	Over Voltage Protection(DC 36V 1 min)
Output Port	Over Current and Surge Voltage Protection
Input Power	Reverse Input and Over Current Protection
6) Input Power
Input Power	DC 24V (DC 18~32V), 0.5A Electronic Fuse, No Replacement Required
4 Green LEDs	On/Off
MOD	Normal Operating or System Mode

3. Physical and Environment Specifications

1) Operating
Temperature	-0.5°C ~ +55°C(-59℉~131℉)
Humidity	95%
2) Physical
Dimension	208 x 152 x 46.5 mm(7.6 x 5.5 x 1.9 in)
Weight	1.5 kg(2.2 lb)

4. Option

– In case of any other specifications, please contact us.
– This specification may be changed without any notifications.
– If you advise good idea or improvement for our products, we will consider it for the products.
– The best strength of our product is high reliability and it will give you the best value.
