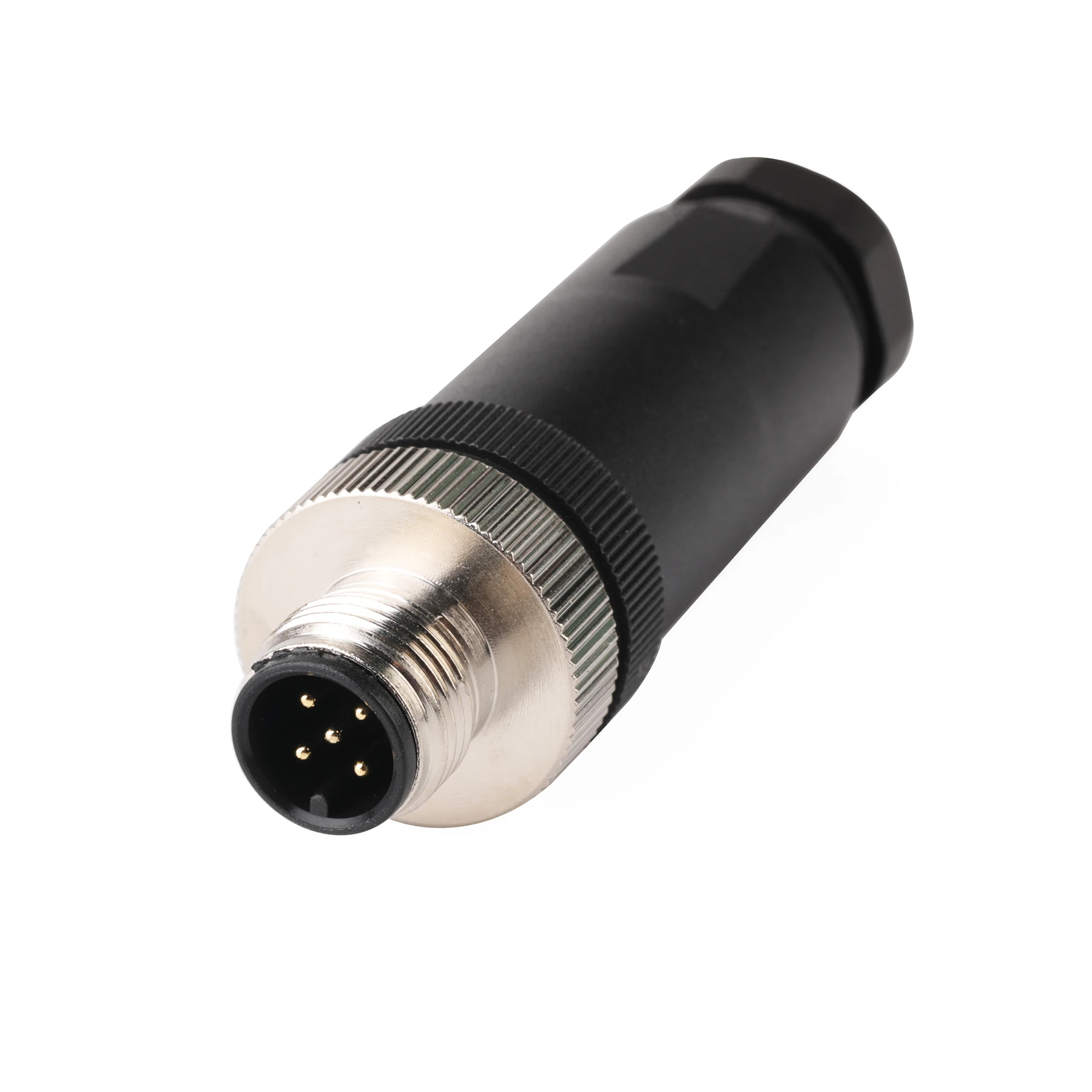

For NMEA 2000 N2K Male Termination Resistor M12 5 Pin IP67 Waterproof for Garmin Networks
Feature:
1. Application: This resistor is placed at the end of the network trunk cable, and is waterproof enough to continue working even when submerged in the bilge.
2. Fitment: Replacement for Lowrance Network, for Simrad Network, for B G Network, for Navico Network, for Garmin Network.
3. Wide Compatibility: The resistor is for NMEA 2000 certified, and it is universal and compatible with
Specification:
Item Type: For NMEA 2000 Male Termination Resistor
Material: ABS and Metal
Number of plug cores: 5
Waterproof rating: IP67
Plug size: M12
Adaptable wire gauge: 22AWG/0.34mm2
Applicable current: 4A connector
Conductor: copper gold plated for use
Voltage: 60V
Applicable temperature: -40 °C ~ + 90 °C
Insulation resistance: ≥100 MΩ
Sealing method: O-type sealing ring
Conductor resistance: ≤5mΩ
Fitment:
for NMEA 2000 Certified
for Lowrance Network
for Simrad Network
for B G Network
for Navico Network
for Garmin Network
Package List:
