STR-02 Wireless Satellite repeater Satellite Phone Indoor GPS Repeater / Amplifier Device (Inmarsat & Thuraya Suitable)

1. Important Notice:

Do not plug-in the power, only after install all cable and antenna, and check it installed correct.

Make sure, your outdoor antenna installed at open area , not shield by tree or high building , and make sure there is no shield at the direction to the satellite.

It is important: To avoid the indoor antenna and outdoor antenna self-excitation. Please install the outdoor antenna more higher . and between the outdoor antenna and indoor antenna , it should have wall or door to isolate it .

2. Install Steps:

• Fix and install the outdoor antenna.

The outdoor antenna must be installed vertically, signal performance will be degraded if the antenna is not vertical . make sure the outdoor antenna fix strongly.  Above have mentioned the important notice about the outdoor install problem. Seal the RF cable joint to avoid rust caused by water leakage, which resulted SWR in be-coming bad and influence using.

• Connect the 10m RF cable to the outdoor antenna. It is better fix the cable well along with the wall . and do not let it all over the place. Avoid people go and stumble for incaution.
• Fix the amplifier device main unit at the suitable location .

The amplifier should mount at place which near the power, so that you can connect the adaptor to the AC power.

The amplifier also need think about indoor antenna location. So that the cable is long enough connect to the indoor antenna.

• Connect the 10m RF Cable the other terminal N type to the amplifier “OUTDOOR” port , which is marked on the panel of device .

Please make sure , it is correct connect to the right port , otherwise it will not work properly .

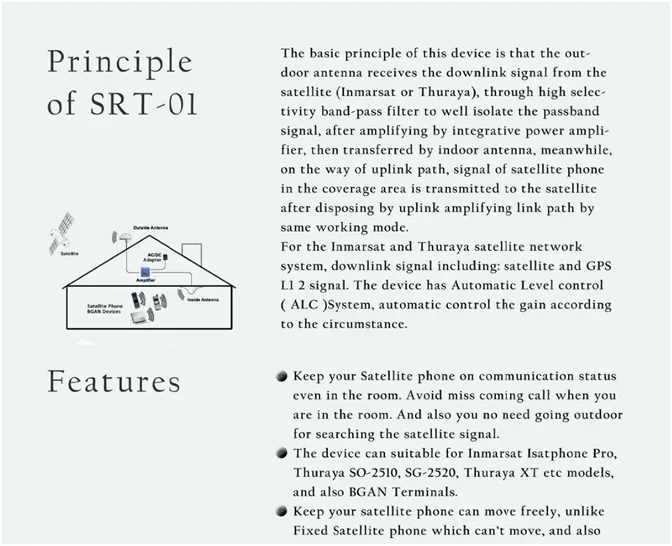

• Fix the indoor antenna at suitable place , which should be in the middle of the area , so that it can coverage more area . Please see below picture .

And also you can choose another flat antenna, which is option antenna need order special . The indoor antenna should mount stable and strongly, incase it drop down or swing , and also the antenna should install vertical to the ground , so that it can cover more area.Connect the indoor antenna to the Amplifier Device “INDOOR” Port through the RF 4m Cable. There is mark on the panel of device for “ INDOOR” port .

Now , install successful , and power on your satellite phone to search and register the satellite network in the room . no need go out door anymore .

Below is the Technical specification for the device .

3. Technical Specification

Features:

-Keep your Satellite phone on communication status even in the room. Avoid miss coming call when you are in the room. And also you no need going outdoor for searching the satellite signal.

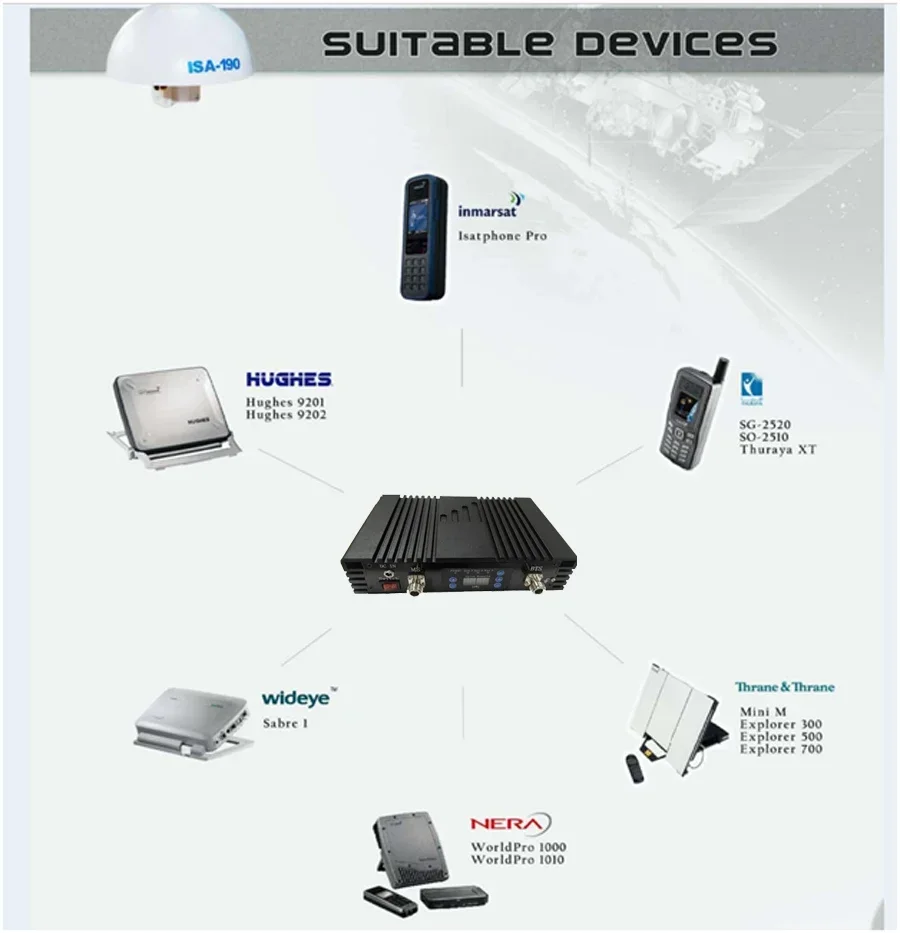

-The device can suitable for Inmarsat Isatphone Pro, Thuraya SO-2510, SG-2520, Thuraya XT etc models, and also GPS.

-Keep your satellite phone can move freely, unlike Fixed Satellite phone which can’t move, and also you can freely hand carry your satellite phone when need go out.

Application Range:

Boat driving room;

Emergency Vehicles;

Remote mine;

Earthquake or other emergency response administration;

Remote country where there don’t have GSM mobile phone signal areas.

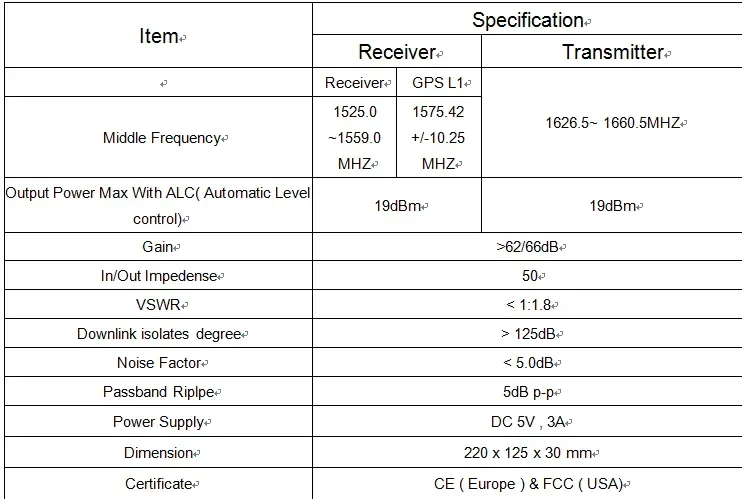

Technical Specification:

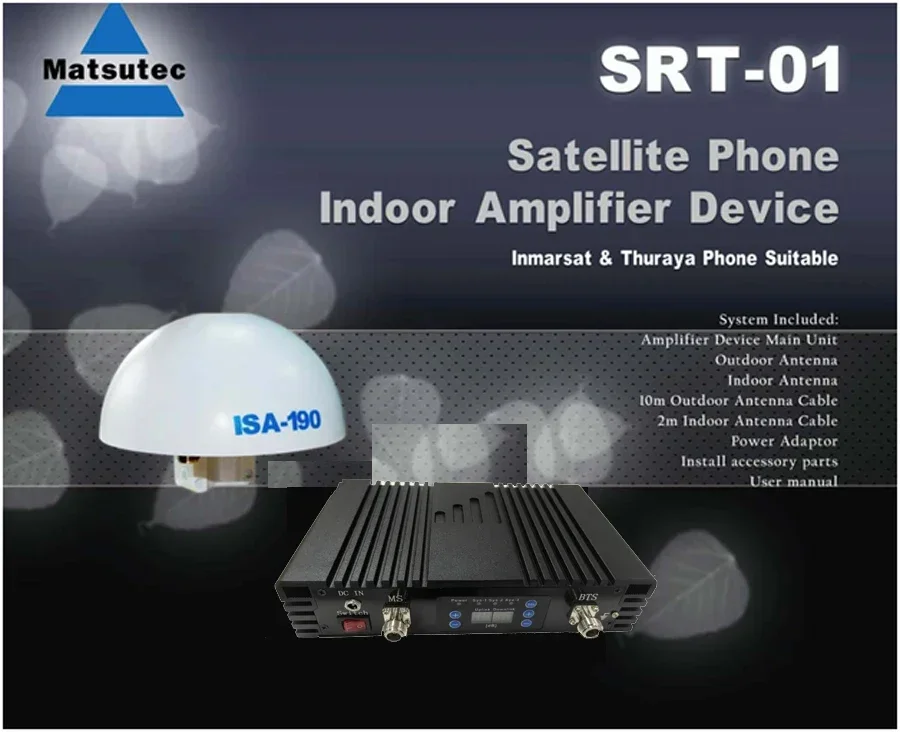

Included:

1 pcs SRT-01 Main Unit1 pcs Outdoor Active  Inmarsat antenna with 33 FT Cable ( 10 meter)  or  Outdoor Active Thuraya antenna with 33 FT Cable ( 10 meter)1 pcs indoor antenna with 16.5 FT Cable ( 5   meter)
